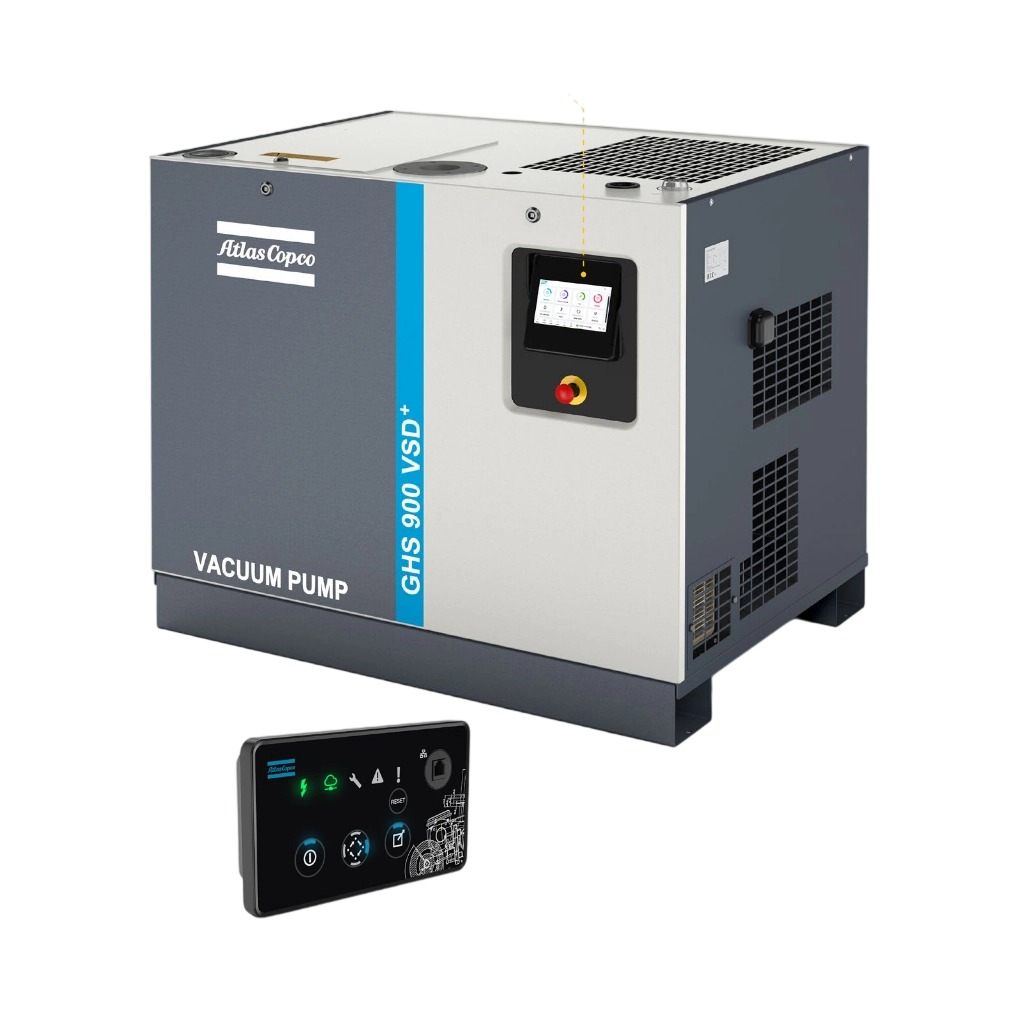

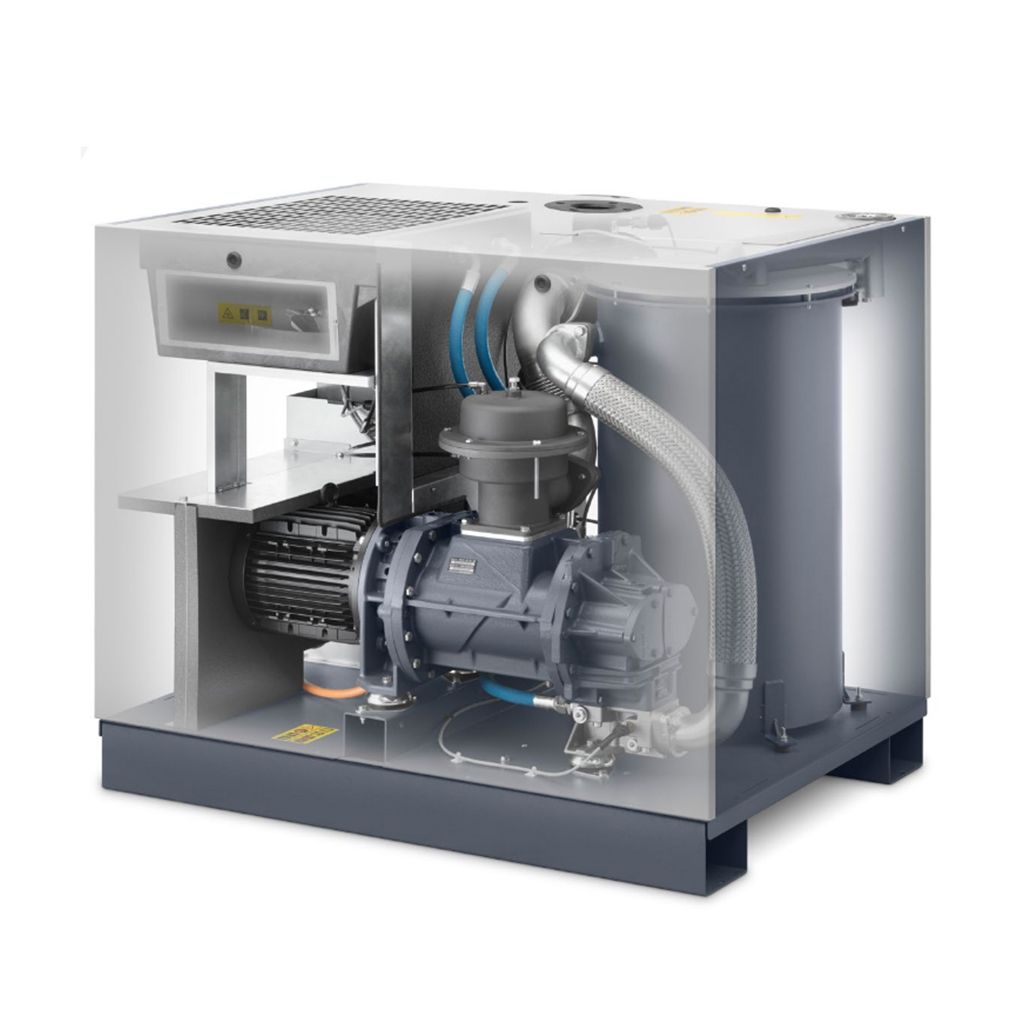

Atlas Copco GHS 350-900 VSD⁺ Air Compressor and Parts
Atlas Copco GHS VSD+ series delivers premium performance with models including GHS 350 VSD+, GHS 585 VSD+, GHS 730 VSD+, GHS 900 VSD+ and their Turbo variants. These 100% original oil-sealed screw vacuum pumps combine intelligent VSD technology with robust construction for energy-efficient, high-capacity vacuum generation across industrial applications.
Engineered for chemical processing, pharmaceuticals and industrial manufacturing, the series offers quiet operation, reduced maintenance and long service life through genuine Atlas Copco components. Contact us today for expert guidance on selecting your ideal GHS VSD+ model!
Service Kits of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1630203000 | 1630 2030 00 – Vacuum fluid basic (20L) (Mineral) |
| 1630112600 | 1630 1126 00 – Vacuum fluid (20L) (Synthetic) |
| 1630112601 | 1630 1126 01 – Vacuum fluid ultra (20L) (Synthetic) |
| 1630112602 | 1630 1126 02 – Vacuum fluid foodgrade (20L) |
3001400003 |
3001 4000 03 – Filter kit GHS 350 VSD+ |
| 3001400016 | 3001 4000 16 – Mounting kit (element) |
| 3001400017 | 3001 4000 17 – Motor overhaul kit GHS 350 VSD+ |
| 3001400019 | 3001 4000 19 – Motor overhaul kit GHS 585 VSD+ Turbo |
Parts NO. |
Name |
| 3001400011 | 3001 4000 11 – Cubicle ventilation kit |
| 3001400012 | 3001 4000 12 – Thermostat kit |
| 3001400013 | 3001 4000 13 – Thermostat kit HWHCAP |
| 1622706407 | 1622 7064 07 – Thermostatic valve 87°C |
3001400014 |
3001 4000 14 – Vacuum control valve kit |
| 3001400004 | 3001 4000 04 – Filter kit GHS 350 VSD+ Turbo, GHS 585 VSD+ |
| 3001400005 | 3001 4000 05 – Filter kit GHS 585 VSD+ Turbo, GHS 730 VSD+ |
| 3001400006 | 3001 4000 06 – Filter kit GHS 730 VSD+ Turbo, GHS 900 VSD+ |
Drive of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1625390159 | 1625 3901 59 – Pad |
| 1079147206 | 1079 1472 06 – Bolt |
| 1625396371 | 1625 3963 71 – Coupling housing |
| 0147136403 | 0147 1364 03 – Hex.bolt |
| 0301234400 | 0301 2344 00 – Washer |
| 0663715300 | 0663 7153 00 – O-ring |
1625396400 |
1625 3964 00 – Cover |
| 0147132303 | 0147 1323 03 – Hex.bolt |
| 0663210322 | 0663 2103 22 – O-ring |
| 0101195140 | 0101 1951 40 – Dowell pin |
| 0663210784 | 0663 2107 84 – O-ring |
| 1625390292 | 1625 3902 92 – Oil injection nozzle |
| 0147132003 | 0147 1320 03 – Hexagon bolt |
1625390135 |
1625 3901 35 – Bushing |
| 1616647000 | 1616 6470 00 – Seal lip |
| 0337605100 | 0337 6051 00 – Parallel key |
| 1625390139 | 1625 3901 39 – Clamping ring |
| 0147140803 | 0147 1408 03 – Hexagon bolt |
| 1625390280 | 1625 3902 80 – Coupling |
| 1625390138 | 1625 3901 38 – Spider coupling |
Parts NO. |
Name |
| 1625390161 | 1625 3901 61 – Housing |
| 0663210657 | 0663 2106 57 – O-ring |
| 0663210667 | 0663 2106 67 – O-ring |
| 0211136503 | 0211 1365 03 – Cap screw |
| 0211196474 | 0211 1964 74 – Cap screw |
| 0686371816 | 0686 3718 16 – Plug |
1625390110 |
1625 3901 10 – Pipe |
| 0663713700 | 0663 7137 00 – O-ring |
| 0301234400 | 0301 2344 00 – Washer |
| 0211136303 | 0211 1363 03 – Screw |
| 1616811890 | 1616 8118 90 – Element |
| 1619603200 | 1619 6032 00 – SPM nipple |
0147196264 |
0147 1962 64 – Bolt |
| 0581202592 | 0581 2025 92 – Fitting pipe |
| 0070600276 | 0070 6002 76 – AR Plastic tube |
| 1625390065 | 1625 3900 65 – Support |
| 0147196308 | 0147 1963 08 – Screw |
| 1625390198 | 1625 3901 98 – Plate |
| 0147196419 | 0147 1964 19 – Hexagon bolt |
Motor assembly of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1625390142 | 1625 3901 42 – Motor GHS 350 VSD+ |
| 1625390143 | 1625 3901 43 – Motor GHS 585 VSD+ Turbo |
| 1625390144 | 1625 3901 44 – Motor GHS 730 VSD+ Turbo |
| 1625390472 | 1625 3904 72 – Motor fan |
| 1619603200 | 1619 6032 00 – SPM nipple |
| 5541212300 | 5541 2123 00 – Screw |
Parts NO. |
Name |
| 0337711000 | 0337 7110 00 – Parallel key |
| 1625390433 | 1625 3904 33 – Baffle assy |
| 1079147206 | 1079 1472 06 – Bolt |
| 1625390438 | 1625 3904 38 – Baffle |
| 0697980904 | 0697 9809 04 – Lock nut |
Separator of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1625390454 | 1625 3904 54 – Vessel assembly |
| 0301233500 | 0301 2335 00 – Plain washer |
| 0266211000 | 0266 2110 00 – Nut |
| 0333322700 | 0333 3227 00 – Lock washer |
1613896712 |
1613 8967 12 – Grounding wire |
| 0226030100 | 0226 0301 00 – Tapping screw |
| 0663212008 | 0663 2120 08 – O-ring |
| 1625390256 | 1625 3902 56 – Shield |
| 1625390296 | 1625 3902 96 – Separator |
Parts NO. |
Name |
| 1625390297 | 1625 3902 97 – Plug |
| 0663212008 | 0663 2120 08 – O-ring |
| 0301233500 | 0301 2335 00 – Plain washer |
0147132803 |
0147 1328 03 – Hexagon bolt |
| 0663713700 | 0663 7137 00 – O-ring |
| 1625390445 | 1625 3904 45 – Outlet pipe |
| 1079147206 | 1079 1472 06 – Bolt |
| 0686371815 | 0686 3718 15 – Plug |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
Air system – Air inlet of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1625390407 | 1625 3904 07 – Air filter |
| 1625390408 | 1625 3904 08 – Filter element |
| 0147196429 | 0147 1964 29 – Hexagon bolt |
| 1625390258 | 1625 3902 58 – Pipe |
| 0663211316 | 0663 2113 16 – O-ring |
Parts NO. |
Name |
| 0266211200 | 0266 2112 00 – Nut |
| 0300013018 | 0300 0130 18 – Washer |
| 0686371812 | 0686 3718 12 – Plug |
| 2236002500 | 2236 0025 00 – Air filter |
| 0605830048 | 0605 8300 48 – Bushing |
Valve of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 0301234400 | 0301 2344 00 – Washer |
| 0147136303 | 0147 1363 03 – Hex.bolt |
| 0663715000 | 0663 7150 00 – O-ring |
| 0147140303 | 0147 1403 03 – Hexagon bolt |
| 0300013018 | 0300 0130 18 – Washer |
0581202592 |
0581 2025 92 – Fitting pipe |
| 0070600276 | 0070 6002 76 – AR Plastic tube |
| 1625390264 | 1625 3902 64 – Housing |
| 1622369002 | 1622 3690 02 – Bushing |
| 1625390153 | 1625 3901 53 – Seal |
0663712000 |
0663 7120 00 – O-ring |
| 1625390268 | 1625 3902 68 – Disc |
| 1625390263 | 1625 3902 63 – Membrane |
| 1625390267 | 1625 3902 67 – Plate |
| 0661102000 | 0661 1020 00 – Sealing washer |
Parts NO. |
Name |
| 9090050800 | 9090 0508 00 – Silencer |
| 1625390451 | 1625 3904 51 – Nut |
| 1625390154 | 1625 3901 54 – Spring |
| 1625390403 | 1625 3904 03 – Cover |
| 0147196069 | 0147 1960 69 – Hex.bolt |
0261211200 |
0261 2112 00 – Hexagon nut |
| 1625390389 | 1625 3903 89 – Piston |
| 0663210616 | 0663 2106 16 – O-ring |
| 0663715000 | 0663 7150 00 – O-ring |
| 1625390309 | 1625 3903 09 – Valve |
1625390151 |
1625 3901 51 – Plate |
| 0147132603 | 0147 1326 03 – Screw |
| 0147195889 | 0147 1958 89 – Hexagon bolt |
| 1079990385 | 1079 9903 85 – Label |
Cooling system of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 0580001736 | 0580 0017 36 – Fitting pipe |
| 1625390140 | 1625 3901 40 – Hose assy |
| 1625390077 | 1625 3900 77 – Cooler GHS 350 VSD+ |
| 0215001016 | 0215 0010 16 – Screw set |
| 1625424900 | 1625 4249 00 – Axial fan |
Parts NO. |
Name |
| 1625390219 | 1625 3902 19 – Baffle GHS 350 VSD+ |
| 1625390085 | 1625 3900 85 – Baffle GHS 585 VSD+ Turbo |
| 1625390075 | 1625 3900 75 – Cooler GHS 585 VSD+ Turbo |
| 1625390068 | 1625 3900 68 – Cooler GHS 730 VSD+ Turbo |
Sensors of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1089057470 | 1089 0574 70 – Temp. sensor |
| 1089063729 | 1089 0637 29 – Temp.switch |
Parts NO. |
Name |
| 1625390276 | 1625 3902 76 – Vacuum pressure sensor |
Oil injection of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 0580001736 | 0580 0017 36 – Fitting pipe |
| 1625390176 | 1625 3901 76 – Hose assy |
| 1625426000 | 1625 4260 00 – Hexagon nipple |
| 1625390257 | 1625 3902 57 – Oil filter |
Parts NO. |
Name |
| 0663211343 | 0663 2113 43 – O-ring |
| 1625390127 | 1625 3901 27 – Scavenge line |
| 0583812100 | 0583 8121 00 – Fitting pipe |
| 0070725004 | 0070 7250 04 – AR Plastic tube |
Thermostat of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 0663713600 | 0663 7136 00 – O-ring |
| 1625390157 | 1625 3901 57 – Housing |
| 0301233500 | 0301 2335 00 – Plain washer |
| 0147132303 | 0147 1323 03 – Hex.bolt |
1079147206 |
1079 1472 06 – Bolt |
| 0852001150 | 0852 0011 50 – Ball valve |
| 0583812103 | 0583 8121 03 – Fitting pipe |
| 0070600269 | 0070 6002 69 – Tube |
| 1513016800 | 1513 0168 00 – Sight glass |
Parts NO. |
Name |
| 0663210215 | 0663 2102 15 – O-ring |
| 1202899200 | 1202 8992 00 – Plug |
| 0583814073 | 0583 8140 73 – Fitting pipe |
| 0070725007 | 0070 7250 07 – Plastic tube |
1622706406 |
1622 7064 06 – Thermostatic valve |
| 0663210195 | 0663 2101 95 – O-ring |
| 1614611800 | 1614 6118 00 – Flange |
| 0301232100 | 0301 2321 00 – Plain washer |
| 0147124603 | 0147 1246 03 – Hex.bolt |
Regulation system, Loose parts of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 0663987000 | 0663 9870 00 – O-ring |
| 1079147206 | 1079 1472 06 – Bolt |
| 1900520013 | 1900 5200 13 – Elektronikon MK5 graphic |
| 0147116903 | 0147 1169 03 – Hex.bolt |
Parts NO. |
Name |
| 0301231500 | 0301 2315 00 – Washer |
| 1089031005 | 1089 0310 05 – Brake resistor |
| 0147120803 | 0147 1208 03 – Screw |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
Cubicle of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1900223801 | 1900 2238 01 – Cubicle |
| 1625390222 | 1625 3902 22 – Metal sheet assembly |
| 1625390030 | 1625 3900 30 – Wire harness |
| 1625390277 | 1625 3902 77 – Pressure sensor |
| 9820726220 | 9820 7262 20 – Service diagram |
| 1625480400 | 1625 4804 00 – Communication cable |
1625390181 |
1625 3901 81 – Converter frame |
| 1625396301 | 1625 3963 01 – Converter assembly |
| 1089933976 | 1089 9339 76 – EMC-filter |
| 1625390460 | 1625 3904 60 – Bracket emc filter |
| 1089958729 | 1089 9587 29 – DC line filter |
| 1089955115 | 1089 9551 15 – Circuit breaker |
| 1089955133 | 1089 9551 33 – Circuit breaker |
| 1089960210 | 1089 9602 10 – Connection block circuit breaker |
1089966406 |
1089 9664 06 – Aux. Switch |
| 1089960234 | 1089 9602 34 – Contactor |
| 1089951456 | 1089 9514 56 – Control transformer |
| 1089951338 | 1089 9513 38 – Emergency stop button |
| 1089951330 | 1089 9513 30 – Contact block |
1089951328 |
1089 9513 28 – Holder |
| 1088003993 | 1088 0039 93 – Terminal block |
| 1088003995 | 1088 0039 95 – Terminal block |
| 1088006107 | 1088 0061 07 – Terminal bridge |
| 1088003730 | 1088 0037 30 – Female connector |
| 1088003181 | 1088 0031 81 – End terminal |
Parts NO. |
Name |
| 1088003132 | 1088 0031 32 – Connector |
| 1088100101 | 1088 1001 01 – Warning label |
| 1089955661 | 1089 9556 61 – Air inlet with filter |
| 0698514075 | 0698 5140 75 – Cable gland |
| 0697980924 | 0697 9809 24 – Nut |
| 0698514071 | 0698 5140 71 – Cable gland |
0697980920 |
0697 9809 20 – Nut |
| 0697980913 | 0697 9809 13 – Nut |
| 2203052700 | 2203 0527 00 – Data label |
| 0991801109 | 0991 8011 09 – Raceway |
| 1089948704 | 1089 9487 04 – Ferric coil |
| 0583810104 | 0583 8101 04 – Coupling |
| 1625422304 | 1625 4223 04 – Din rail |
| 0698514869 | 0698 5148 69 – Cable gland |
1625390670 |
1625 3906 70 – Pressure switch |
| 1089058017 | 1089 0580 17 – Solenoid valve |
| 1625390447 | 1625 3904 47 – Bracket valve |
| 0823009051 | 0823 0090 51 – Non return valve |
| 0560440115 | 0560 4401 15 – T-coupling |
0583812081 |
0583 8120 81 – Elbow coupling |
| 1900223802 | 1900 2238 02 – Cubicle |
| 1625396302 | 1625 3963 02 – Converter assembly |
| 1900223803 | 1900 2238 03 – Cubicle |
| 1625396303 | 1625 3963 03 – Converter assembly |
Bodywork of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1625390241 | 1625 3902 41 – Frame |
| 0348010211 | 0348 0102 11 – Cable tie |
| 1625390442 | 1625 3904 42 – Panel |
| 1079147206 | 1079 1472 06 – Bolt |
| 1625390356 | 1625 3903 56 – Grating |
| 1625390372 | 1625 3903 72 – Plug |
1625390420 |
1625 3904 20 – Panel |
| 1625390423 | 1625 3904 23 – Roof |
| 0215001013 | 0215 0010 13 – Screw |
| 1625390053 | 1625 3900 53 – Door |
| 1622767300 | 1622 7673 00 – Lock |
| 1079990348 | 1079 9903 48 – Warning label |
| 1079993144 | 1079 9931 44 – Decal |
Parts NO. |
Name |
| 1625390427 | 1625 3904 27 – Back panel |
| 1625390430 | 1625 3904 30 – Front panel |
| 0690111601 | 0690 1116 01 – Logotype |
| 1625390450 | 1625 3904 50 – Decal |
| 1625390219 | 1625 3902 19 – Plate |
1088080327 |
1088 0803 27 – Grommet |
| 0698015000 | 0698 0150 00 – Grommet |
| 1625426280 | 1625 4262 80 – Duct |
| 0291111000 | 0291 1110 00 – Lock nut |
| 1625426482 | 1625 4264 82 – Protection |
| 1625390441 | 1625 3904 41 – Support fan duct |
| 0215001016 | 0215 0010 16 – Screw |
Markings of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 1625390381 | 1625 3903 81 – Decal GHS 350 VSD+ |
| 1625390382 | 1625 3903 82 – Decal GHS 585 VSD+ |
| 1625390383 | 1625 3903 83 – Decal GHS 730 VSD+ |
| 1625390384 | 1625 3903 84 – Decal GHS 900 VSD+ |
Parts NO. |
Name |
| 1625390385 | 1625 3903 85 – Decal GHS 350 VSD+ Turbo |
| 1625390386 | 1625 3903 86 – Decal GHS 585 VSD+ Turbo |
| 1625390387 | 1625 3903 87 – Decal GHS 730 VSD+ Turbo |
| 1625390415 | 1625 3904 15 – Dataplate |
Standard option – G threaded inlet & outlet – NPT threaded inlet & outlet of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 8092300741 | 8092 3007 41 – Standard option – G threaded inlet |
| 0147110816 | 0147 1108 16 – Hex.head screw |
| 1625390459 | 1625 3904 59 – Spacer flange |
| 1625390461 | 1625 3904 61 – Gasket |
0301237100 |
0301 2371 00 – Washer |
| 0333324200 | 0333 3242 00 – Lock washer |
| 0266211300 | 0266 2113 00 – Nut |
| 8092300758 | 8092 3007 58 – Standard option – G threaded outlet |
Parts NO. |
Name |
| 0663987000 | 0663 9870 00 – O-ring |
| 1625390456 | 1625 3904 56 – Flange |
| 0147132903 | 0147 1329 03 – Hexagon bolt |
8092300766 |
8092 3007 66 – Standard option – NPT threaded inlet |
| 1625390457 | 1625 3904 57 – Flange |
| 8092300774 | 8092 3007 74 – Standard option – NPT threaded outlet |
| 1625390458 | 1625 3904 58 – Flange |
Standard option – Inlet valve of Atlas Copco GHS 350-900 VSD⁺ Air Compressor
Parts NO. |
Name |
| 8092300782 | 8092 3007 82 – Standard option – Inlet valve |
| 0147145203 | 0147 1452 03 – Hex. head screw |
| 1625390459 | 1625 3904 59 – Spacer flange |
| 1625390461 | 1625 3904 61 – Gasket |
Parts NO. |
Name |
| 0301237100 | 0301 2371 00 – Washer |
| 0266211300 | 0266 2113 00 – Nut |
| 1614921201 | 1614 9212 01 – Valve |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
- Direct Sourcing & Authenticity:We source directly from manufacturers like Atlas Copco, CAT, etc. ensuring all spare parts are 100% original and new.
- Industry Expertise:With extensive experience across diverse sectors, we provide tailored solutions that enhance productivity and reliability.
- Comprehensive Support:We offer full-service support, including technical consultation, installation, maintenance, and emergency assistance.
- Commitment to Innovation:We stay updated with the latest advancements, providing cutting-edge technology for improved efficiency and sustainability.
Outer packing:Export carton We deliver this item to worldwide via postal air mail, express, air transportation, sea shipping, etc.
- If delivery time is not a critical factor and you prefer economical freight charges, you have the option of choosing postal air mail or sea shipping with a registered number. This method typically takes 15-30 days.
- For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.
For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.
1. Who are we?
Established in Guangzhou, China, we operate within diverse markets, with a significant presence in the Domestic Market(20.00%),Western Europe(15.00%),Southeast Asia(12.00%),Southern Europe(10.00%),North America(7.00%),Eastern Europe(7.00%),Northern Europe(5.00%),South
America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(3.00%),South Asia(2.50%),Africa(2.50%),Central America(1.00%). Our team, consisting of approximately 51-100 professionals, is dedicated to serving our customers worldwide.
2. Quality Assurance:
Ensuring top-notch quality is a cornerstone of our operation. We adhere to OE standards and subject every product to rigorous testing before shipment.
3.Our Product Range:
Explore our comprehensive selection, featuring air filter cartridges, air filters, oil/fuel filters, hydraulic filters, oil separators, air compressor parts, and more.
4. Why Choose Us:
What sets us apart is our unique history as a formerly state-owned enterprise with almost 30 years of expertise. We prioritize quality and offer competitive pricing, making us a reliable choice in the market.
5. Our Services:
- Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Accepted Payment Currencies: USD, EUR, CNY
- Payment Types: T/T, MoneyGram, PayPal, Western Union, Cash, Escrow
- Languages Spoken: English, Chinese
Choose us for reliable products, quality assurance, and a diverse range of services tailored to your needs.
Answk Technology Co., Ltd was established in 2010 and has evolved into a versatile provider, specializing in mechanical and electronic products. Our technical team possesses 30 years of manufacturing experience, so factory prioritizes independent research and sources premium materials globally. Emphasizing quality control, we design major production machines in-house and offer specialized OEM and ODM services to meet custom needs across diverse industries, including the production of high- quality air compressor parts and related components, such as oil filters, air filters, oil/fuel filters, hydraulic filters, oil separators, air filter cartridges for cost-effective solutions.
We provide the products of original air compressors, mining machinery, drill rigs, mineral processing machinery, and related original spare parts from multiple brands (such as Atlas Copco, Ingersoll Rand, Epiroc, Chicago Pneumatic, Sandvik, Sullair, Hitachi, CAT, BOGE, etc.). We aslo manufacture the high-quality filtrations for air compressors, mining machinery, drill rigs, mineral processing machinery, etc.
Committed to innovation and excellence, Our Factory is a trusted partner for businesses seeking customized solutions. Our empowering OEM&ODM service leverages manufacturing expertise, seamlessly integrating your unique ideas into the production process. Whether it’s a specific design or product modifications, we deliver high-quality, bespoke solutions with precision and efficiency.
