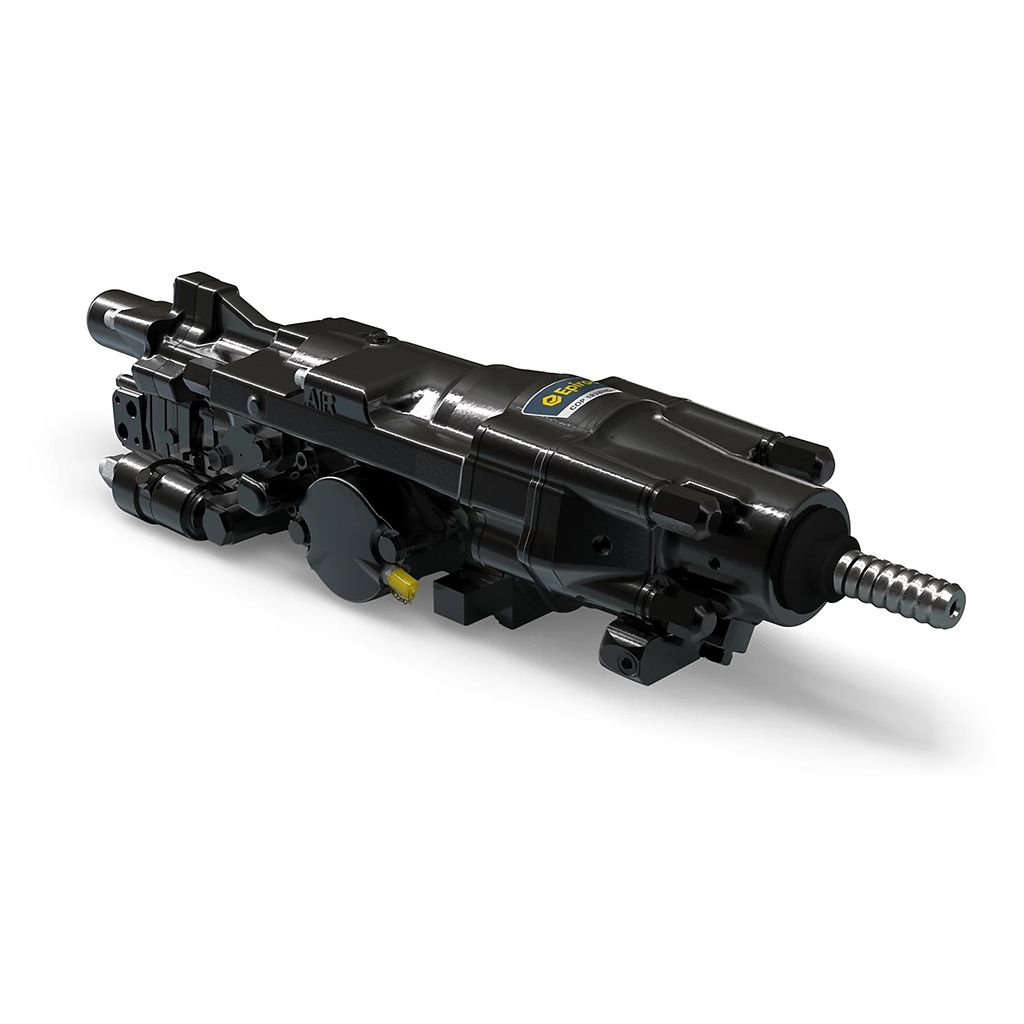

Epiroc COP 1838HD+ Rock Drill and Spare Parts
Epiroc COP 1838HD+ Hydraulic Rock Drill excels in underground mining with high-torque output (18 kW) and a dual-damping system, minimizing jamming risks while extending tool life . Its floating shank adapter optimizes rock contact, and independent lubrication ensures reliability in extreme conditions .
All Spare Parts are genuine Epiroc originals—guaranteeing peak performance for 38–64 mm drilling, efficient cuttings removal, and minimal downtime . Dominate tough tunneling projects with authentic COP HD+ technology. Contact us for tailored underground solutions!
Parts NO. |
Name |
| 8311126301 | 8311 1263 01 – ROCK DRILL |
| 3115504280 | 3115 5042 80 – FRONT PART COMP |
| 3115504200 | 3115 5042 00 – FRONT PART |
| 3115503660 | 3115 5036 60 – COVER GROUP |
| 3115503680 | 3115 5036 80 – COVER COMPL. |
3115503581 |
3115 5035 81 – GEAR HOUSING |
| 3115531380 | 3115 5313 80 – ROT.CHUCK,COMPL |
| 3115527480 | 3115 5274 80 – INTERM. COMPL. |
| 3115527424 | 3115 5274 24 – INTERMED. PART |
| 3115194480 | 3115 1944 80 – CYLINDER |
| 3115527580 | 3115 5275 80 – SEAL HOUSE COMP |
| 3115277280 | 3115 2772 80 – SEAL HOUSE COMP |
3115347380 |
3115 3473 80 – HYDRAULIC MOTOR |
| 3115347381 | 3115 3473 81 – HYDRAULIC MOTOR |
| 3115347383 | 3115 3473 83 – HYDRAULIC MOTOR |
| 3115347385 | 3115 3473 85 – HYDRAULIC MOTOR |
| 3115345181 | 3115 3451 81 – ACCUMULATOR |
| 3115351181 | 3115 3511 81 – ACCUMULATOR |
3115261591 |
3115 2615 91 – RETURN ACCUM. |
| 3115288780 | 3115 2887 80 – CONNECT. PLATE |
| 3115917090 | 3115 9170 90 – O-RING SET |
| 3115917091 | 3115 9170 91 – SEAL KIT |
| 3115923893 | 3115 9238 93 – OVERHAUL KIT |
| 3115923894 | 3115 9238 94 – OVERHAUL KIT |
3115561693 |
3115 5616 93 – CONVERSION KIT |
| 3115531390 | 3115 5313 90 – CONVERSION KIT |
| 3115160391 | 3115 1603 91 – NIPPLE SET |
| 7490516087 | 7490 5160 87 – SHANK ADAPTER |
| 7490516088 | 7490 5160 88 – SHANK ADAPTER |
| 7490516098 | 7490 5160 98 – SHANK ADAPTER |
7490516099 |
7490 5160 99 – SHANK ADAPTER |
| 7490516120 | 7490 5161 20 – SHANK ADAPTER |
| 7490516121 | 7490 5161 21 – SHANK ADAPTER |
| 7490516393 | 7490 5163 93 – SHANK ADAPTER |
| 3115223100 | 3115 2231 00 – DRILL COLLAR |
| 3115028600 | 3115 0286 00 – DOME NUT |
3115028700 |
3115 0287 00 – WASHER |
| 3115145700 | 3115 1457 00 – SIDE BOLT |
| 3115504000 | 3115 5040 00 – SIDE BOLT |
| 3115027700 | 3115 0277 00 – COUPLING |
| 0335213000 | 0335 2130 00 – CIRCLIP |
| 3115032700 | 3115 0327 00 – GASKET |
| 3115354800 | 3115 3548 00 – NUT |
3115573700 |
3115 5737 00 – LABEL |
| 3115575704 | 3115 5757 04 – LABEL |
| 3176651200 | 3176 6512 00 – NIPPLE |
| 3176651400 | 3176 6514 00 – NIPPLE |
| 3115503610 | 3115 5036 10 – COVER |
| 0666719001 | 0666 7190 01 – RADIAL LIP SEAL |
| 0335217300 | 0335 2173 00 – CIRCLIP |
0663615100 |
0663 6151 00 – O-RING |
| 3115504405 | 3115 5044 05 – FLUSHING HEAD |
| 3115233300 | 3115 2333 00 – CUP SEAL |
| 3115519000 | 3115 5190 00 – CUP SEAL |
| 3115504501 | 3115 5045 01 – GUIDE |
| 3115302400 | 3115 3024 00 – WIPER |
3115324500 |
3115 3245 00 – SEAL RING |
| 3115505900 | 3115 5059 00 – WASHER |
| 3115534020 | 3115 5340 20 – STOP RING |
| 3115504312 | 3115 5043 12 – CONNECT. PLATE |
| 3115182500 | 3115 1825 00 – PLUG |
| 0147147903 | 0147 1479 03 – SCREW, HEX HEAD |
| 3315019510 | 3315 0195 10 – LOCK WASHER |
3115344500 |
3115 3445 00 – SEAL RING |
| 0102047300 | 0102 0473 00 – PIN |
| 0259206100 | 0259 2061 00 – THREAD INSERT |
| 0259006800 | 0259 0068 00 – THREAD INSERT |
| 3115240100 | 3115 2401 00 – PLUG |
| 3115328917 | 3115 3289 17 – SEAL RING |
Parts NO. |
Name |
| 0544216200 | 0544 2162 00 – GREASE NIPPLE |
| 0686420103 | 0686 4201 03 – PLUG |
| 0653903800 | 0653 9038 00 – GASKET |
| 0666718801 | 0666 7188 01 – RADIAL LIP SEAL |
| 0335216900 | 0335 2169 00 – CIRCLIP |
3115361300 |
3115 3613 00 – STUD |
| 3115027300 | 3115 0273 00 – WASHER |
| 3115082100 | 3115 0821 00 – SHAFT |
| 0516150401 | 0516 1504 01 – NEEDLE BEARING |
| 3115082300 | 3115 0823 00 – WASHER |
| 3115027400 | 3115 0274 00 – GEAR WHEEL |
| 0516153800 | 0516 1538 00 – NEEDLE BEARING |
3115082400 |
3115 0824 00 – SLEEVE |
| 0667120600 | 0667 1206 00 – SEAL |
| 3115274200 | 3115 2742 00 – GUIDE SLEEVE |
| 0663213301 | 0663 2133 01 – O-RING |
| 3115188100 | 3115 1881 00 – CHUK.BUSH.GUIDE |
| 0509022100 | 0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
3115029701 |
3115 0297 01 – SHIM |
| 3115029702 | 3115 0297 02 – SHIM |
| 3115029703 | 3115 0297 03 – SHIM |
| 3115531400 | 3115 5314 00 – DRIVER |
| 3115296801 | 3115 2968 01 – ROT.CH.BUSHING |
| 0663212000 | 0663 2120 00 – O-RING |
3115535803 |
3115 5358 03 – LINER |
| 3115328923 | 3115 3289 23 – SEAL RING |
| 3115328913 | 3115 3289 13 – SEAL RING |
| 3115536000 | 3115 5360 00 – DISK SPRING |
| 3115174606 | 3115 1746 06 – NOZZLE |
| 3115238400 | 3115 2384 00 – VALVE SEAT |
| 3115238300 | 3115 2383 00 – VALVE CONE |
3115329018 |
3115 3290 18 – SEAL RING |
| 3115345500 | 3115 3455 00 – CONNECT.PLATE |
| 0211196084 | 0211 1960 84 – SCREW |
| 0663210062 | 0663 2100 62 – O-RING |
| 3115298800 | 3115 2988 00 – SEAL RING |
| 3115514601 | 3115 5146 01 – SEAL RING |
| 3115187900 | 3115 1879 00 – SEAL KIT |
3115188000 |
3115 1880 00 – SEAL KIT |
| 3115297100 | 3115 2971 00 – DAMPING PISTON |
| 0686911000 | 0686 9110 00 – PROTECTION PLUG |
| 3115116500 | 3115 1165 00 – STUD |
| 3115211200 | 3115 2112 00 – GUIDE |
| 3115097000 | 3115 0970 00 – SEAL KIT |
| 0663210576 | 0663 2105 76 – O-RING |
3115505001 |
3115 5050 01 – PISTON GUIDE |
| 3115363501 | 3115 3635 01 – PISTON |
| 3115168000 | 3115 1680 00 – PISTON GUIDE |
| 3115115600 | 3115 1156 00 – SEAL KIT |
| 0663613500 | 0663 6135 00 – O-RING |
| 3115176500 | 3115 1765 00 – VALVE PISTON |
| 3115207703 | 3115 2077 03 – VALVE COVER |
3115207605 |
3115 2076 05 – VALVE COVER |
| 0147143803 | 0147 1438 03 – SCREW, HEX HEAD |
| 3115329100 | 3115 3291 00 – REG. PLUG |
| 3115321400 | 3115 3214 00 – NUT |
| 3115169700 | 3115 1697 00 – SEAL WASHER |
| 0663613401 | 0663 6134 01 – O-RING |
| 3115348100 | 3115 3481 00 – BACK HEAD |
0147148103 |
0147 1481 03 – SCREW, HEX HEAD |
| 0663613800 | 0663 6138 00 – O-RING |
| 0686925026 | 0686 9250 26 – PLUG |
| 0686925027 | 0686 9250 27 – PLUG |
| 0663214300 | 0663 2143 00 – O-RING |
0686644200 |
0686 6442 00 – PLUG |
| 0661102000 | 0661 1020 00 – SEAL WASHER |
| 3115174606 | 3115 1746 06 – NOZZLE |
| 0663214501 | 0663 2145 01 – O-RING |
Parts NO. |
Name |
| 3115504200 | 3115 5042 00 – FRONT PART |
| 3115504405 | 3115 5044 05 – FLUSHING HEAD |
| 3115233300 | 3115 2333 00 – CUP SEAL |
| 3115519000 | 3115 5190 00 – CUP SEAL |
3115504501 |
3115 5045 01 – GUIDE |
| 3115302400 | 3115 3024 00 – WIPER |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 3115505900 | 3115 5059 00 – WASHER |
| 3115534020 | 3115 5340 20 – STOP RING |
Parts NO. |
Name |
| 3115504312 | 3115 5043 12 – CONNECT. PLATE |
| 0147147903 | 0147 1479 03 – SCREW, HEX HEAD |
| 3315019510 | 3315 0195 10 – LOCK WASHER |
3115344500 |
3115 3445 00 – SEAL RING |
| 3115328917 | 3115 3289 17 – SEAL RING |
| 0663214300 | 0663 2143 00 – O-RING |
| 0663214501 | 0663 2145 01 – O-RING |
| 0259008400 | 0259 0084 00 – THREAD INSERT |
Parts NO. |
Name |
| 3115503680 | 3115 5036 80 – COVER COMPL. |
| 0663615100 | 0663 6151 00 – O-RING |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 0102047300 | 0102 0473 00 – PIN |
Parts NO. |
Name |
| 3115503610 | 3115 5036 10 – COVER |
| 0666719001 | 0666 7190 01 – RADIAL LIP SEAL |
| 0335217300 | 0335 2173 00 – CIRCLIP |
Parts NO. |
Name |
| 3115503581 | 3115 5035 81 – GEAR HOUSING |
| 3115082100 | 3115 0821 00 – SHAFT |
| 0516150401 | 0516 1504 01 – NEEDLE BEARING |
| 3115082300 | 3115 0823 00 – WASHER |
3115027400 |
3115 0274 00 – GEAR WHEEL |
| 0516153800 | 0516 1538 00 – NEEDLE BEARING |
| 3115082400 | 3115 0824 00 – SLEEVE |
| 0667120600 | 0667 1206 00 – SEAL |
| 3115274200 | 3115 2742 00 – GUIDE SLEEVE |
0663213301 |
0663 2133 01 – O-RING |
| 3115531380 | 3115 5313 80 – ROT.CHUCK,COMPL |
| 0509022100 | 0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
| 0259031100 | 0259 0311 00 – THREAD INSERT |
Parts NO. |
Name |
| 3115029701 | 3115 0297 01 – SHIM |
| 3115029702 | 3115 0297 02 – SHIM |
| 3115029703 | 3115 0297 03 – SHIM |
| 3115531400 | 3115 5314 00 – DRIVER |
3115296801 |
3115 2968 01 – ROT.CH.BUSHING |
| 3115324500 | 3115 3245 00 – SEAL RING |
| 0663212000 | 0663 2120 00 – O-RING |
| 0544216200 | 0544 2162 00 – GREASE NIPPLE |
| 0686420103 | 0686 4201 03 – PLUG |
0653903800 |
0653 9038 00 – GASKET |
| 0666718801 | 0666 7188 01 – RADIAL LIP SEAL |
| 0335216900 | 0335 2169 00 – CIRCLIP |
| 3115361300 | 3115 3613 00 – STUD |
| 3115027300 | 3115 0273 00 – WASHER |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
Parts NO. |
Name |
| 3115527480 | 3115 5274 80 – INTERM. COMPL. |
| 3115238400 | 3115 2384 00 – VALVE SEAT |
| 3115238300 | 3115 2383 00 – VALVE CONE |
3115329018 |
3115 3290 18 – SEAL RING |
| 3115345500 | 3115 3455 00 – CONNECT. PLATE |
| 0211196084 | 0211 1960 84 – SCREW |
| 0663210062 | 0663 2100 62 – O-RING |
| 3115527424 | 3115 5274 24 – INTERMED. PART |
| 3115535803 | 3115 5358 03 – LINER |
3115328923 |
3115 3289 23 – SEAL RING |
| 0259206100 | 0259 2061 00 – THREAD INSERT |
| 0259006800 | 0259 0068 00 – THREAD INSERT |
| 3115240100 | 3115 2401 00 – PLUG |
Parts NO. |
Name |
| 3115298800 | 3115 2988 00 – SEAL RING |
| 3115514601 | 3115 5146 01 – SEAL RING |
| 3115187900 | 3115 1879 00 – SEAL KIT |
3115188000 |
3115 1880 00 – SEAL KIT |
| 3115297100 | 3115 2971 00 – DAMPING PISTON |
| 0686911000 | 0686 9110 00 – PROTECTION PLUG |
| 3115174606 | 3115 1746 06 – NOZZLE |
| 3115328913 | 3115 3289 13 – SEAL RING |
3115536000 |
3115 5360 00 – DISK SPRING |
| 3115174606 | 3115 1746 06 – NOZZLE |
| 0686644200 | 0686 6442 00 – PLUG |
| 0661102000 | 0661 1020 00 – SEAL WASHER |
Parts NO. |
Name |
| 3115116500 | 3115 1165 00 – STUD |
| 3115211200 | 3115 2112 00 – GUIDE |
| 0259031100 | 0259 0311 00 – THREAD INSERT |
0259001100 |
0259 0011 00 – THREAD INSERT |
| 0259206100 | 0259 2061 00 – THREAD INSERT |
| 3115182500 | 3115 1825 00 – PLUG |
| 0686644704 | 0686 6447 04 – PLUG |
| 0661103400 | 0661 1034 00 – SEAL WASHER |
3115194480 |
3115 1944 80 – CYLINDER |
| 3115527580 | 3115 5275 80 – SEAL HOUSE COMP |
| 3115505001 | 3115 5050 01 – PISTON GUIDE |
| 3115363501 | 3115 3635 01 – PISTON |
Parts NO. |
Name |
| 3115168000 | 3115 1680 00 – PISTON GUIDE |
| 3115277280 | 3115 2772 80 – SEAL HOUSE COMP |
| 3115176500 | 3115 1765 00 – VALVE PISTON |
| 3115207703 | 3115 2077 03 – VALVE COVER |
3115207605 |
3115 2076 05 – VALVE COVER |
| 0147143803 | 0147 1438 03 – SCREW, HEX HEAD |
| 3115329100 | 3115 3291 00 – REG. PLUG |
| 3115321400 | 3115 3214 00 – NUT |
| 3115169700 | 3115 1697 00 – SEAL WASHER |
3115324500 |
3115 3245 00 – SEAL RING |
| 0663613401 | 0663 6134 01 – O-RING |
| 0663213301 | 0663 2133 01 – O-RING |
Parts NO. |
Name |
| 3115115600 | 3115 1156 00 – SEAL KIT |
| 0663613500 | 0663 6135 00 – O-RING |
Parts NO. |
Name |
| 3115097000 | 3115 0970 00 – SEAL KIT |
| 0663210576 | 0663 2105 76 – O-RING |
Parts NO. |
Name |
| 3115348100 | 3115 3481 00 – BACK HEAD |
| 0147148103 | 0147 1481 03 – SCREW, HEX HEAD |
Parts NO. |
Name |
| 0663613800 | 0663 6138 00 – O-RING |
Parts NO. |
Name |
| 3115347390 | 3115 3473 90 – SEAL KIT |
| 3115581203 | 3115 5812 03 – SCREW |
| 3115581204 | 3115 5812 04 – SCREW |
Parts NO. |
Name |
| 3115581205 | 3115 5812 05 – SCREW |
| 3115581207 | 3115 5812 07 – SCREW |
Parts NO. |
Name |
| 3115187000 | 3115 1870 00 – PROTECTION PLUG |
| 3115182201 | 3115 1822 01 – DIAPHRAGM |
| 3115376800 | 3115 3768 00 – VALVE |
| 3115026300 | 3115 0263 00 – PLUG |
Parts NO. |
Name |
| 3115271490 | 3115 2714 90 – LABEL SET |
| 3115270210 | 3115 2702 10 – SCREW |
| 0663612100 | 0663 6121 00 – O-RING |
| 3115271590 | 3115 2715 90 – LABEL SET |
Parts NO. |
Name |
| 0686901054 | 0686 9010 54 – PROTECTION PLUG |
| 3115026200 | 3115 0262 00 – VALVE |
| 3115219681 | 3115 2196 81 – TEST VALVE |
| 3115216300 | 3115 2163 00 – MANDREL |
3115272480 |
3115 2724 80 – DISASSEMB.TOOLS |
| 3115525500 | 3115 5255 00 – DISASSEMB.TOOLS |
| 3115380400 | 3115 3804 00 – EXTRACTOR |
| 0371110002 | 0371 1100 02 – LIFTING EYE |
3115251900 |
3115 2519 00 – TIGHTENING TOOL |
| 3115322300 | 3115 3223 00 – REG. PLUG |
| 3128321113 | 3128 3211 13 – HOSE ASSEMBLY |
| 3115288780 | 3115 2887 80 – CONNECT. PLATE |
Parts NO. |
Name |
| 3115227580 | 3115 2275 80 – HOLDER SET |
| 3115504410 | 3115 5044 10 – FLUSHING HEAD |
| 3115504511 | 3115 5045 11 – GUIDE |
| 3115504420 | 3115 5044 20 – FLUSHING HEAD |
| 3115504521 | 3115 5045 21 – GUIDE |
3115347390 |
3115 3473 90 – SEAL KIT |
3115917090 |
3115 9170 90 – O-RING SET |
| 3115917091 | 3115 9170 91 – SEAL KIT |
| 3115923893 | 3115 9238 93 – OVERHAUL KIT |
| 3115923894 | 3115 9238 94 – OVERHAUL KIT |
| 3115561693 | 3115 5616 93 – CONVERSION KIT |
Parts NO. |
Name |
| 3115288800 | 3115 2888 00 – PRESSURE SCREW |
| 0663210062 | 0663 2100 62 – O-RING |
| 0663210062 | 0663 2100 62 – O-RING |
0663210576 |
0663 2105 76 – O-RING |
| 0663210596 | 0663 2105 96 – O-RING |
| 0663210937 | 0663 2109 37 – O-RING |
| 0663211000 | 0663 2110 00 – O-RING |
| 0663211500 | 0663 2115 00 – O-RING |
| 0663212000 | 0663 2120 00 – O-RING |
0663212800 |
0663 2128 00 – O-RING |
| 0663212901 | 0663 2129 01 – O-RING |
| 0663213301 | 0663 2133 01 – O-RING |
| 0663213400 | 0663 2134 00 – O-RING |
| 0663214300 | 0663 2143 00 – O-RING |
| 0663214400 | 0663 2144 00 – O-RING |
| 0663214501 | 0663 2145 01 – O-RING |
| 0663612100 | 0663 6121 00 – O-RING |
| 0663613401 | 0663 6134 01 – O-RING |
| 0663613500 | 0663 6135 00 – O-RING |
Parts NO. |
Name |
| 0663210936 | 0663 2109 36 – O-RING |
| 0663613501 | 0663 6135 01 – O-RING |
| 0663613600 | 0663 6136 00 – O-RING |
| 0663613800 | 0663 6138 00 – O-RING |
| 0663614300 | 0663 6143 00 – O-RING |
0663614400 |
0663 6144 00 – O-RING |
| 0663615100 | 0663 6151 00 – O-RING |
| 0663905600 | 0663 9056 00 – O-RING |
| 0663910401 | 0663 9104 01 – O-RING |
| 0663915800 | 0663 9158 00 – O-RING |
| 3115298800 | 3115 2988 00 – SEAL RING |
3115324500 |
3115 3245 00 – SEAL RING |
| 3115328913 | 3115 3289 13 – SEAL RING |
| 3115328923 | 3115 3289 23 – SEAL RING |
| 3115329018 | 3115 3290 18 – SEAL RING |
| 3115514601 | 3115 5146 01 – SEAL RING |
| 9125619100 | 9125 6191 00 – O-RING |
| 9900000300 | 9900 0003 00 – PLASTIC BAG |
Parts NO. |
Name |
| 3115917090 | 3115 9170 90 – O-RING SET |
| 3115032700 | 3115 0327 00 – GASKET |
| 0661103800 | 0661 1038 00 – SEAL WASHER |
| 0663210937 | 0663 2109 37 – O-RING |
0663212800 |
0663 2128 00 – O-RING |
| 9125619100 | 9125 6191 00 – O-RING |
| 3115302400 | 3115 3024 00 – WIPER |
| 3115233300 | 3115 2333 00 – CUP SEAL |
3115519000 |
3115 5190 00 – CUP SEAL |
3115328917 |
3115 3289 17 – SEAL RING |
| 3115505900 | 3115 5059 00 – WASHER |
| 3115344500 | 3115 3445 00 – SEAL RING |
Parts NO. |
Name |
| 0666719001 | 0666 7190 01 – RADIAL LIP SEAL |
| 0544216200 | 0544 2162 00 – GREASE NIPPLE |
| 0686420103 | 0686 4201 03 – PLUG |
0653903800 |
0653 9038 00 – GASKET |
0666718801 |
0666 7188 01 – RADIAL LIP SEAL |
| 0667120600 | 0667 1206 00 – SEAL |
| 0661102000 | 0661 1020 00 – SEAL WASHER |
| 3115188090 | 3115 1880 90 – SEAL KIT |
0661103400 |
0661 1034 00 – SEAL WASHER |
| 3115097000 | 3115 0970 00 – SEAL KIT |
| 3115115600 | 3115 1156 00 – SEAL KIT |
| 3115169700 | 3115 1697 00 – SEAL WASHER |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
Parts NO. |
Name |
| 3115917091 | 3115 9170 91 – SEAL KIT |
| 3115028600 | 3115 0286 00 – DOME NUT |
| 3115028700 | 3115 0287 00 – WASHER |
| 0335213000 | 0335 2130 00 – CIRCLIP |
| 3115354800 | 3115 3548 00 – NUT |
3115182201 |
3115 1822 01 – DIAPHRAGM |
3115270210 |
3115 2702 10 – SCREW |
| 3115271490 | 3115 2714 90 – LABEL SET |
| 3115376800 | 3115 3768 00 – VALVE |
| 3115271590 | 3115 2715 90 – LABEL SET |
| 3115192602 | 3115 1926 02 – DIAPHRAGM |
| 3115261710 | 3115 2617 10 – PLUG |
| 3115316400 | 3115 3164 00 – LABEL |
3115575704 |
3115 5757 04 – LABEL |
0147147903 |
0147 1479 03 – SCREW, HEX HEAD |
| 3315019510 | 3315 0195 10 – LOCK WASHER |
| 0335217300 | 0335 2173 00 – CIRCLIP |
| 3115504000 | 3115 5040 00 – SIDE BOLT |
| 0335216900 | 0335 2169 00 – CIRCLIP |
| 3115361300 | 3115 3613 00 – STUD |
| 3115535803 | 3115 5358 03 – LINER |
Parts NO. |
Name |
| 0516150401 | 0516 1504 01 – NEEDLE BEARING |
| 0516153800 | 0516 1538 00 – NEEDLE BEARING |
| 0509022100 | 0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
| 3115029701 | 3115 0297 01 – SHIM |
| 3115029702 | 3115 0297 02 – SHIM |
3115029703 |
3115 0297 03 – SHIM |
| 3115145700 | 3115 1457 00 – SIDE BOLT |
| 0211196084 | 0211 1960 84 – SCREW |
| 0147143803 | 0147 1438 03 – SCREW, HEX HEAD |
| 0147148103 | 0147 1481 03 – SCREW, HEX HEAD |
| 3115923893 | 3115 9238 93 – OVERHAUL KIT |
| 3115504501 | 3115 5045 01 – GUIDE |
3115534020 |
3115 5340 20 – STOP RING |
3115531400 |
3115 5314 00 – DRIVER |
| 3115296801 | 3115 2968 01 – ROT.CH.BUSHING |
| 3115536000 | 3115 5360 00 – DISK SPRING |
| 3115297100 | 3115 2971 00 – DAMPING PISTON |
| 3115505001 | 3115 5050 01 – PISTON GUIDE |
| 3115363501 | 3115 3635 01 – PISTON |
| 3115168000 | 3115 1680 00 – PISTON GUIDE |
Parts NO. |
Name |
| 3115188090 | 3115 1880 90 – SEAL KIT |
| 3115917090 | 3115 9170 90 – O-RING SET |
3115531390 |
3115 5313 90 – CONVERSION KIT |
| 3115527480 | 3115 5274 80 – INTERM. COMPL. |
| 3115527580 | 3115 5275 80 – SEAL HOUSE COMP |
Parts NO. |
Name |
| 3115029790 | 3115 0297 90 – SHIMS SET |
| 3115531380 | 3115 5313 80 – ROT.CHUCK,COMPL |
0509022100 |
0509 0221 00 – ROLLER BEARING |
| 0509022300 | 0509 0223 00 – ROLLER BEARING |
| 3115531400 | 3115 5314 00 – DRIVER |
Parts NO. |
Name |
| 3176006664 | 3176 0066 64 – Sensor Cable |
| 3176007627 | 3176 0076 27 – Sensor Cable |
| 3115600435 | 3115 6004 35 – Bushing |
| 3176007609 | 3176 0076 09 – Sensor Cable |
| 3176006646 | 3176 0066 46 – Sensor Cable |
3176006644 |
3176 0066 44 – Sensor Cable |
| 3176006665 | 3176 0066 65 – Sensor Cable |
| 9106250409 | 9106 2504 09 – Sensor Cable |
| 9106250456 | 9106 2504 56 – Sensor Cable |
| 9106249935 | 9106 2499 35 – Sensor Cable |
| 9106219216 | 9106 2192 16 – Boom Extension Sensor |
9106219203 |
9106 2192 03 – Angle Sensor |
| 9106152440 | 9106 1524 40 – Depth Sensor |
| 9106975591 | 9106 9755 91 – Angle Sensor |
| 3128303527 | 3128 3035 27 – Rubber Top Plate |
| 3128302553 | 3128 3025 53 – Middle Drill Rod Guide Bush |
| 3128302546 | 3128 3025 46 – Front Drill Rod Guide Bush |
3128301684 |
3128 3016 84 – Middle Drill Rod Guide Bracket |
| 3128078467 | 3128 0784 67 – Front Drill Rod Bracket |
| 3115182201 | 3115 1822 01 – Accumulator Diaphragm |
| 3115376800 | 3115 3768 00 – Nitrogen Charging Nozzle |
| 6060003642 | 6060 0036 42 – KIT |
| 3222328551 | 3222 3285 51 – Check |
3222330764 |
3222 3307 64 – VALVE |
| 3222339238 | 3222 3392 38 – PLATE FOR DRILLING RIG FLEXIROC D65 |
| 3222339239 | 3222 3392 39 – PLATE FOR DRILLING RIG FLEXIROC D65 |
| 3222341732 | 3222 3417 32 – VALVE |
| 3128078548 | 3128 0785 48 – Holder |
| 3128078549 | 3128 0785 49 – Holder |
3128045801 |
3128 0458 01 – Side panel |
| 3128303930 | 3128 3039 30 – Sliding element |
| 3128307488 | 3128 3074 88 – Sliding element |
| 3176001272 | 3176 0012 72 – CABLE COMPLETE |
| 3128078197 | 3128 0781 97 – PULL ROPE |
| 0663214300 | 0663 2143 00 – O’RING |
3115233300 |
3115 2333 00 – CUP SEAL |
| 3115504501 | 3115 5045 01 – GUIDE D=38 |
| 3115302400 | 3115 3024 00 – WIPER |
| 3115328917 | 3115 3289 17 – SEAL RING |
| 3115505900 | 3115 5059 00 – WASHER |
| 3115504312 | 3115 5043 12 – CONNECT |
3115344500 |
3115 3445 00 – SEAL |
| 5724000894 | 5724 0008 94 – SEAL KIT |
| 3128319021 | 3128 3190 21 – HYDR. CYLINDER |
| 3128309310 | 3128 3093 10 – HYDR. CYLINDER |
| 3128320896 | 3128 3208 96 – CYLINDER |
| 3128309254 | 3128 3092 54 – HYDR. CYLINDER |
3128325731 |
3128 3257 31 – HYDR. CYLINDER |
| 3128309160 | 3128 3091 60 – HYDR. CYLINDER |
| 3128259200 | 3128 2592 00 – HYDR. CYLINDER |
| 9121704502 | 9121 7045 02 – HYDR. CYLINDER |
| 9121709302 | 9121 7093 02 – HYDR. CYLINDER |
| 3128231290 | 3128 2312 90 – HYDR. CYLINDER |
3128027501 |
3128 0275 01 – CYLINDER GUARD |
| 3128027502 | 3128 0275 02 – CYLINDER GUARD |
| 9106219022 | 9106 2190 22 – HYDR. CYLINDER |
| 3128308129 | 3128 3081 29 – HYDR. CYLINDER |
| 9121591302 | 9121 5913 02 – HYDR. CYLINDER |
| 9121591301 | 9121 5913 01 – HYDR. CYLINDER |
9106077228 |
9106 0772 28 – HYDR. CYLINDER |
| 3128313457 | 3128 3134 57 – HYDR. CYLINDER |
| 3128310883 | 3128 3108 83 – HYDR. CYLINDER |
| 3128202015 | 3128 2020 15 – PRESS.RED.VALVE |
| 3176837700 | 3176 8377 00 – SHUTTLE VALVE |
| 0823005016 | 0823 0050 16 – CHECK VALVE |
3177309283 |
3177 3092 83 – DIRECTION VALVE |
| 3222326896 | 3222 3268 96 – DOUBLE CH.VALVE |
| 3214871280 | 3214 8712 80 – PRESS.RED.VALVE |
| 3217977300 | 3217 9773 00 – FLOW CONT.VALVE |
| 3128253816 | 3128 2538 16 – LUBR. VALVE |
| 3128253995 | 3128 2539 95 – CHECK VALVE |
3128253864 |
3128 2538 64 – LUBR. VALVE |
| 3128253980 | 3128 2539 80 – LUBR. VALVE |
| 3128253802 | 3128 2538 02 – RELIEF VALVE / SAFETY VALVE |
| 3217931624 | 3217 9316 24 – CHECK VALVE |
| 3177309209 | 3177 3092 09 – DIRECTION VALVE |
5112287805 |
5112 2878 05 – BRAKE VALVE |
| 3177309280 | 3177 3092 80 – DIRECTION VALVE |
| 3177309260 | 3177 3092 60 – DIRECTION VALVE |
| 3217999709 | 3217 9997 09 – SOLENOID VALVE |
| 3217984800 | 3217 9848 00 – PRESS.RED.VALVE |
| 9106184722 | 9106 1847 22 – SHUTTLE VALVE |
3128209998 |
3128 2099 98 – CHECK VALVE |
| 3128209955 | 3128 2099 55 – CHECK VALVE |
| 3177309245 | 3177 3092 45 – DIRECTION VALVE |
| 3177309288 | 3177 3092 88 – DIRECTION VALVE |
| 5112300759 | 5112 3007 59 – Oil filter |
| 3222999091 | 3222 9990 91 – Oil filter |
| 6060009419 | 6060 0094 19 – Oil filter |
8231085419 |
8231 0854 19 – Filter breather |
| 5580004128 | 5580 0041 28 – Fuel filter |
| 6060008047 | 6060 0080 47 – Fuel filter |
| 6060008044 | 6060 0080 44 – Fuel filter coarse cleaning |
| 3222999092 | 3222 9990 92 – Fine fuel filter |
| 5537463100 | 5537 4631 00 – Transmission filter |
| 5112239217 | 5112 2392 17 – Filter element |
5534279900 |
5534 2799 00 – Filter element |
| 5535271600 | 5535 2716 00 – Filter element P161365 |
| 5541489600 | 5541 4896 00 – Filter element |
| 5112305242 | 5112 3052 42 – Filter element |
| 6060006878 | 6060 0068 78 – Filter element (5112287858) |
3115247200 |
3115 2472 00 – Diaphragm |
Parts NO. |
Name |
| 3128230103 | 3128 2301 03 – U-Clamp |
| 3128078435 | 3128 0784 35 – U-Clamp |
| 3128078418 | 3128 0784 18 – U-Bracket |
| 3128078549 | 3128 0785 49 – Clamping Device |
3128078548 |
3128 0785 48 – Clamping Device |
| 3128078534 | 3128 0785 34 – Guide Wheel |
| 3128078427 | 3128 0784 27 – Bearing (Guide Wheel) |
| 3128045815 | 3128 0458 15 – Steel Sheet |
| 3128078437 | 3128 0784 37 – Front Support Plate |
| 3128303930 | 3128 3039 30 – Wear-Resistant Strip |
3128317550 |
3128 3175 50 – Reel |
| 3128321645 | 3128 3216 45 – Reel Pulley |
| 3128078437 | 3128 0784 37 – Middle Drill Rod Guide Base |
| 3128305977 | 3128 3059 77 – Aluminum Support Plate for Rock Drill |
| 3125078412 | 3125 0784 12 – Propulsion Wire Rope |
| 3125101003 | 3125 1010 03 – Return Wire Rope |
3115531400 |
3115 5314 00 – Square Copper Sleeve |
| 3115600488 | 3115 6004 88 – Drive Sleeve |
| 3115504501 | 3115 5045 01 – Machine Head Guide Sleeve |
| 3115917094 | 3115 9170 94 – Rock Drill Seal Kit |
| 3115192602 | 3115 1926 02 – Rock Drill Oil Return Diaphragm |
| 3222333481 | 3222 3334 81 – CARTRIDGE |
3222340627 |
3222 3406 27 – LOCK,CHAIN DRILLING RIG |
| 3222148800 | 3222 1488 00 – SENSOR,INDUCTION |
| 3222278802 | 3222 2788 02 – SWITCH, TOGGLE |
| 3222331841 | 3222 3318 41 – JOYSTICK |
| 3176000288 | 3176 0002 88 – PULSE SENSOR |
| 9106219985 | 9106 2199 85 – LEVEL SENSOR |
3222323209 |
3222 3232 09 – HYDRAULIC PUMP |
| 3222323213 | 3222 3232 13 – GEAR PUMP |
| 3222339238 | 3222 3392 38 – PLATE |
| 3222349872 | 3222 3498 72 – TOUCHPANEL |
| 0335115600 | 0335 1156 00 – CIRCLIP |
| 8231120286 | 8231 1202 86 – CHECK VALVE |
8231120035 |
8231 1200 35 – PRESS.REL.VALVE |
| 8231120367 | 8231 1203 67 – OVERCENT.VALVE |
| 9106063010 | 9106 0630 10 – DOUBLE CH.VALVE |
| 5112319229 | 5112 3192 29 – SOLENOID VALVE |
| 9106083301 | 9106 0833 01 – CHECK VALVE |
| 5112321959 | 5112 3219 59 – SOLENOID VALVE |
9106090706 |
9106 0907 06 – CHECK VALVE |
| 3217973502 | 3217 9735 02 – CHECK VALVE |
| 0823005017 | 0823 0050 17 – CHECK VALVE |
| 9111382103 | 9111 3821 03 – CHECK VALVE |
| 5112287790 | 5112 2877 90 – DIRECTION VALVE |
| 5112310562 | 5112 3105 62 – EXPANSION VALVE |
0823005019 |
0823 0050 19 – CHECK VALVE |
| 3217933750 | 3217 9337 50 – PRESS.REL.VALVE |
| 9106131301 | 9106 1313 01 – RELIEF VALVE |
| 1261100004 | 1261 1000 04 – PRESS.RED.VALVE |
| 3217934160 | 3217 9341 60 – PRESS.RED.VALVE |
| 3217996341 | 3217 9963 41 – PRESS.RED.VALVE |
3217934140 |
3217 9341 40 – PRESS.RED.VALVE |
| 5112310260 | 5112 3102 60 – BY PASS VALVE |
| 0823005018 | 0823 0050 18 – CHECK VALVE |
| 8202030402 | 8202 0304 02 – BALL VALVE |
| 0823009006 | 0823 0090 06 – CHECK VALVE |
| 3214897280 | 3214 8972 80 – DIRECTION VALVE |
| 3217933740 | 3217 9337 40 – PRESS.REL.VALVE |
3214739100 |
3214 7391 00 – DOUBLE CH.VALVE |
| 1089062117 | 1089 0621 17 – SOLENOID VALVE |
| 0830100776 | 0830 1007 76 – SAFETY VALVE |
| 8202030204 | 8202 0302 04 – BALL VALVE |
| 3215959500 | 3215 9595 00 – PRESS.RED.VALVE |
| 8204049897 | 8204 0498 97 – SOLENOID VALVE |
| 3217980120 | 3217 9801 20 – CHECK VALVE |
1503126702 |
1503 1267 02 – SAFETY VALVE |
| 8202031129 | 8202 0311 29 – BALL VALVE |
| 8202031137 | 8202 0311 37 – BALL VALVE |
| 8202031160 | 8202 0311 60 – BALL VALVE |
| 0834119405 | 0834 1194 05 – SAFETY VALVE |
| 3217999720 | 3217 9997 20 – SOLENOID VALVE |
3217999601 |
3217 9996 01 – SOLENOID VALVE |
| 8202031103 | 8202 0311 03 – BALL VALVE |
| 8202030105 | 8202 0301 05 – BALL VALVE |
| 3217976612 | 3217 9766 12 – LUBR. VALVE |
| 5112216380 | 5112 2163 80 – LUBR. VALVE |
| 3719000089 | 3719 0000 89 – JAW HOLDER |
3175744000 |
3175 7440 00 – VALVES |
| 3715839680 | 3715 8396 80 – JAWS ROD HOLDER NQ |
| 3719001408 | 3719 0014 08 – CONTROL VALVE 7V15 |
| 3715744100 | 3715 7441 00 – VALVE SITS |
| 3719000675 | 3719 0006 75 – VALVE CATRIDGE PR.RED/REL |
| 3719000677 | 3719 0006 77 – CATRIDGE |
| 3715000675 | 3715 0006 75 – CATRIDGE PR.RED/REL |
3719000673 |
3719 0006 73 – CATRIDGE |
| 3176004267 | 3176 0042 67 – Main switch Epiroc Boomer |
| 5536758600 | 5536 7586 00 – Hydraulic motor Epiroc |
| 5580003299 | 5580 0032 99 – Hydraulic pump Epiroc |
| 9106160739 | 9106 1607 39 – Valve |
| 6060003767 | 6060 0037 67 – Shut-off valve Boomer |
| 3217983460 | 3217 9834 60 – Check valve Boomer |
3217999720 |
3217 9997 20 – Pressure reducing valve |
| 8234020080 | 8234 0200 80 – Pressure reducing valve |
| 5112287917 | 5112 2879 17 – Solenoid valve |
| 5571956100 | 5571 9561 00 – Solenoid valve Epiroc Wagner |
| 3222188142 | 3222 1881 42 – Filter set |
3222188152 |
3222 1881 52 – Air Filter Set |
| 5535271600 | 5535 2716 00 – Filter |
| 5590019366 | 5590 0193 66 – Filter |
| 8231045410 | 8231 0454 10 – Hydraulic tank filter |
For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:
At ANWSK, we specialize in distributing air compressors and genuine original spare parts from leading brands like Atlas Copco, Ingersoll Rand, Epiroc, and CAT. Our product range includes oil-injected screw, oil-free screw, vane, centrifugal, portable compressors, and air dryers, catering to industries such as shipbuilding, mining, power supply, oil and gas, engineering, textiles, food & beverage, pharmaceuticals, cement, and automotive.
- Direct Sourcing & Authenticity:We source directly from manufacturers like Atlas Copco, CAT, etc. ensuring all spare parts are 100% original and new.
- Industry Expertise:With extensive experience across diverse sectors, we provide tailored solutions that enhance productivity and reliability.
- Comprehensive Support:We offer full-service support, including technical consultation, installation, maintenance, and emergency assistance.
- Commitment to Innovation:We stay updated with the latest advancements, providing cutting-edge technology for improved efficiency and sustainability.
ANWSK is your trusted partner for high-quality air compressor solutions, delivering value and reliability to every customer.
Inner packing:Poly bags
Outer packing:Export carton We deliver this item to worldwide via postal air mail, express, air transportation, sea shipping, etc.
Outer packing:Export carton We deliver this item to worldwide via postal air mail, express, air transportation, sea shipping, etc.
- If delivery time is not a critical factor and you prefer economical freight charges, you have the option of choosing postal air mail or sea shipping with a registered number. This method typically takes 15-30 days.
- For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.
For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.
1. Who are we?
Established in Guangzhou, China, we operate within diverse markets, with a significant presence in the Domestic Market(20.00%),Western Europe(15.00%),Southeast Asia(12.00%),Southern Europe(10.00%),North America(7.00%),Eastern Europe(7.00%),Northern Europe(5.00%),South
America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(3.00%),South Asia(2.50%),Africa(2.50%),Central America(1.00%). Our team, consisting of approximately 51-100 professionals, is dedicated to serving our customers worldwide.
2. Quality Assurance:
Ensuring top-notch quality is a cornerstone of our operation. We adhere to OE standards and subject every product to rigorous testing before shipment.
3.Our Product Range:
Explore our comprehensive selection, featuring air filter cartridges, air filters, oil/fuel filters, hydraulic filters, oil separators, air compressor parts, and more.
4. Why Choose Us:
What sets us apart is our unique history as a formerly state-owned enterprise with almost 30 years of expertise. We prioritize quality and offer competitive pricing, making us a reliable choice in the market.
5. Our Services:
- Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
- Accepted Payment Currencies: USD, EUR, CNY
- Payment Types: T/T, MoneyGram, PayPal, Western Union, Cash, Escrow
- Languages Spoken: English, Chinese
Choose us for reliable products, quality assurance, and a diverse range of services tailored to your needs.
Founded in 2010 and headquartered in Guangzhou, Answk Technology Co., Ltd. has grown into a versatile global leader specializing in mechanical and electronic solutions. With over a decade of industry expertise, we serve as a trusted provider of high-performance air compressors, filtration systems, and genuine spare parts. Backed by a team of seasoned professionals and a worldwide distribution network, we deliver mission-critical components and systems to clients across six continents, supporting industries such as mining, construction, oil and gas, automotive, and energy.
Answk offers a comprehensive range of original air compressors, construction machinery, and genuine spare parts from globally recognized brands, including Atlas Copco, Ingersoll Rand, Epiroc, Chicago Pneumatic, Quincy, Sandvik, Sullair, Hitachi, CAT, BOGE, Caterpillar, Hyundai, and Doosan, etc. Our product lineup spans oil-injected and oil-free screw compressors, portable compressors, air treatment systems, and heavy-duty mining and construction equipment. Complementing this portfolio, we design and manufacture high-precision filtration solutions for air compressors and industrial machinery, such as oil filters, air filters, hydraulic filters, and fuel/water separators. Engineered for durability and seamless compatibility with leading brands, these products ensure optimal performance in critical sectors like mining, oil and gas, automotive, and power generation.
Answk’s technical team brings 30+ years of filtration expertise. We deliver customized OEM/ODM solutions. Vertically integrated facilities use proprietary machinery and self-developed molds. Premium global materials ensure end-to-end production control. We craft bespoke filtration systems and compressor components. Solutions replicate original designs or offer cost-efficient alternatives. Seasoned engineers translate client needs into durable, high-performance products. All designs meet industry standards and withstand extreme conditions.
