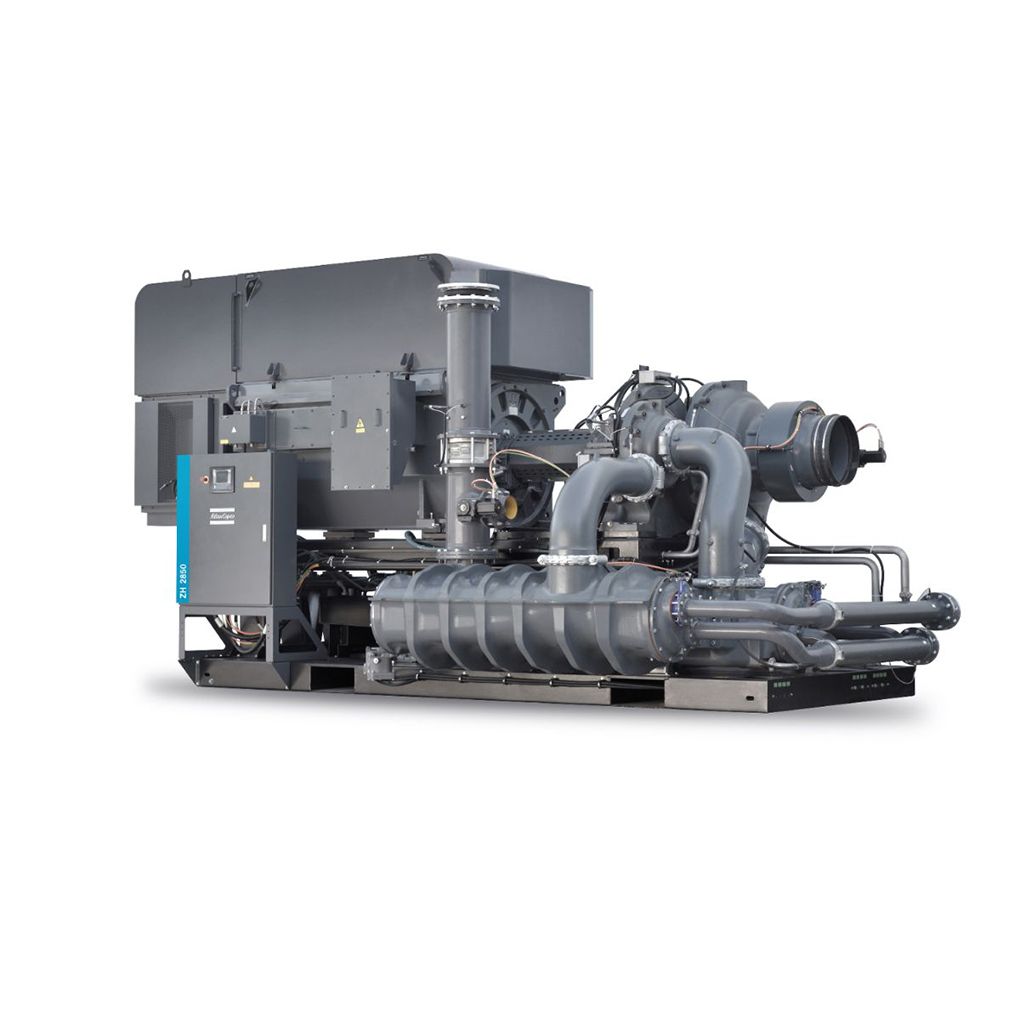

Atlas Copco ZH9000 Oil-free Air Centrifugal Compressor and Spare Parts

Atlas Copco ZH9000 Air Compressor delivers industrial-grade reliability and energy-efficient performance for heavy-duty manufacturing, shipbuilding, and automotive applications. Featuring advanced pressure sensors and a direct-drive design, it ensures stable airflow with minimal energy loss.

Maximize uptime with Genuine Original Spare Parts, precision-engineered to match Atlas Copco’s strict quality standards. These components—including high-precision filters, valves, and sensors—guarantee seamless compatibility, prevent downtime, and extend equipment lifespan. Backed by global 24/7 support, the ZH9000 and Genuine parts offer sustainable productivity and long-term cost savings for demanding industrial environments.

Whatsapp
Email Us
Quick Sales Support

Service kits of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1420120176 1420 1201 76 – Oil pump repair kit
2906908500 2906 9085 00 – Bearing kit free end shaft
0906031400 0906 0314 00 – Float valve kit – IC 1
2906038000 2906 0380 00 – Float valve kit – IC 2/AC
2906908600 2906 9086 00 – Drive shaft Seal kit

2906097800

2906 0978 00 – Air filter kit
2906097900 2906 0979 00 – Air/oil filter kit
2906907700 2906 9077 00 – Thermostatic valve kit
2906098000 2906 0980 00 – Impeller inspection kit, stage 1/2 and 3
2906098100 2906 0981 00 – Gearbox inspection kit

2906908200

2906 9082 00 – Air Seal kit, stage 1/2
2906906400 2906 9064 00 – Air Seal kit stage 3
2906908300 2906 9083 00 – Bearing kit stage 1
2906908400 2906 9084 00 – Bearing kit stage 2
2906908100 2906 9081 00 – Gearbox inspection kit

Parts NO.

Name
2906904400 2906 9044 00 – Main oil pump kit
2906908900 2906 9089 00 – Aftercooler kit
2906909000 2906 9090 00 – Oilcooler kit
2906909100 2906 9091 00 – Cooler cleaning kit

2906908800

2906 9088 00 – Intercooler kit
2906904500 2906 9045 00 – Oil demister service kit
2906909200 2906 9092 00 – A-maintenance kit
2906907800 2906 9078 00 – Air filter kit
2906031400 2906 0314 00 – Float valve kit IC1

2906908700

2906 9087 00 – Drive shaft bearing kit
2906909300 2906 9093 00 – B-maintenance kit
2906907900 2906 9079 00 – Air/oil filter kit
2906909400 2906 9094 00 – C-maintenance kit
2906908000 2906 9080 00 – Impeller inspection kit

Cubicle of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621867926 1621 8679 26 – Label ZH9000-1
1621867927 1621 8679 27 – Label ZH9000-2
1621867928 1621 8679 28 – Label ZH9000-3
1621867929 1621 8679 29 – Label ZH9000-4
1621867930 1621 8679 30 – Label ZH9000-5

1619276600

1619 2766 00 – Bolt
1621944300 1621 9443 00 – Cubicle
1202658400 1202 6584 00 – Seal AR
1614726300 1614 7263 00 – Plate
1621867936 1621 8679 36 – Label ZH9000-6
1621944381 1621 9443 81 – Cubicle

1621944400

1621 9444 00 – Cubicle
1614816700 1614 8167 00 – Plate
1614821300 1614 8213 00 – Hinge
1615224200 1615 2242 00 – Bracket
0160432200 0160 4322 00 – Screw
1619589802 1619 5898 02 – Bolt
2906030000 2906 0300 00 – Hinge replacement kit

1900161901

1900 1619 01 – Control panel 50Hz
1900161951 1900 1619 51 – Control panel 60Hz
1079990609 1079 9906 09 – Label
9823151451 9823 1514 51 – Label
1613663900 1613 6639 00 – Data plate 50Hz
1614894900 1614 8949 00 – Data plate 60Hz
1079990168 1079 9901 68 – Label

1079991101

1079 9911 01 – Label
1079992369 1079 9923 69 – Label
1079992345 1079 9923 45 – Label
1089050609 1089 0506 09 – Terminal 3
1089050627 1089 0506 27 – Terminal 15
1091636202 1091 6362 02 – Connector

1091636203

1091 6362 03 – Connector
1091636205 1091 6362 05 – Connector
1091636204 1091 6362 04 – Connector
1091636216 1091 6362 16 – Connector
1091636211 1091 6362 11 – Connector
1091636229 1091 6362 29 – Connector

1088003149

1088 0031 49 – Connector
1088003130 1088 0031 30 – Connector
1091636212 1091 6362 12 – Connector
1091636210 1091 6362 10 – Connector
1091636206 1091 6362 06 – Connector
1091636213 1091 6362 13 – Connector
1088003108 1088 0031 08 – Connector
1089940611 1089 9406 11 – Interface converter

1089940610

1089 9406 10 – Interface converter
1091636525 1091 6365 25 – Fuse holder 50Hz
1089916834 1089 9168 34 – Fuse 60Hz
1091636501 1091 6365 01 – Fuse holder 60Hz
1091636529 1091 6365 29 – Fuse holder 50Hz
1089916860 1089 9168 60 – Fuse 60Hz
1089944609 1089 9446 09 – Overload relay
1089944608 1089 9446 08 – Overload relay

1089942497

1089 9424 97 – Mounting piece
1091636911 1091 6369 11 – Circuit breaker 50Hz
1091637121 1091 6371 21 – Contactor 50Hz
1091637105 1091 6371 05 – Contact block
1089943804 1089 9438 04 – Relay 50Hz
1089943801 1089 9438 01 – Relay 60Hz

1089941609

1089 9416 09 – 3 phase terminal block

1089943802

1089 9438 02 – Relay 50Hz
1089943803 1089 9438 03 – Relay 60Hz
1089941521 1089 9415 21 – Contactor
1089941523 1089 9415 23 – Contactor 500V/50Hz
1089941524 1089 9415 24 – Contactor 60Hz
1089941511 1089 9415 11 – Contactor 50Hz
1089941514 1089 9415 14 – Contactor 60Hz

1089941667

1089 9416 67 – Circuit breaker 230V/50Hz
1089941665 1089 9416 65 – Circuit breaker 400V/50Hz
1089941664 1089 9416 64 – Circuit breaker 440-460V/60Hz
1089941663 1089 9416 63 – Circuit breaker 575V/60Hz
1089941666 1089 9416 66 – Circuit breaker 230V/50Hz
1089941620 1089 9416 20 – Circuit breaker 230V/50Hz

1089941618

1089 9416 18 – Circuit breaker 400V/50Hz
1089941616 1089 9416 16 – Circuit breaker 500V/50Hz
1089941617 1089 9416 17 – Circuit breaker 440-460V/60Hz
1089941607 1089 9416 07 – Contact block
1900062052 1900 0620 52 – Control panel 380V/60Hz
1900062053 1900 0620 53 – Control panel 440-460V/60Hz

1900062054

1900 0620 54 – Control panel 575V/60Hz
9823151461 9823 1514 61 – Label
1089939811 1089 9398 11 – Terminal
1089050628 1089 0506 28 – Terminal
1089050660 1089 0506 60 – Terminal 60Hz
1089050633 1089 0506 33 – Terminal

1089920311

1089 9203 11 – Circuit breaker 50Hz
1089920337 1089 9203 37 – Circuit breaker 60Hz
1089941301 1089 9413 01 – Circuit breaker
1089907655 1089 9076 55 – Indicator
1089907662 1089 9076 62 – Trafo 50Hz

1900062001

1900 0620 01 – Control panel 230V/50Hz
1900062002 1900 0620 02 – Control panel 400V/50Hz
1900062003 1900 0620 03 – Control panel 500V/50Hz
1900062051 1900 0620 51 – Control panel 220-230V/60Hz

Parts NO.

Name
1089057790 1089 0577 90 – Terminal
1089036289 1089 0362 89 – Push button red
1089036230 1089 0362 30 – Contact block
1089036290 1089 0362 90 – Push button green
1089036278 1089 0362 78 – Contact block

1089036251

1089 0362 51 – Emergency stop button
1089036258 1089 0362 58 – Contact block
1089036288 1089 0362 88 – Push button black
1089920303 1089 9203 03 – Circuit breaker
1089920336 1089 9203 36 – Circuit breaker
1089920338 1089 9203 38 – Circuit breaker

1900302306

1900 3023 06 – Automatic water shut off valve 50Hz
1900302356 1900 3023 56 – Automatic water shut off valve 60Hz
1089928511 1089 9285 11 – Power supply
1089921904 1089 9219 04 – Net filter
1900302310 1900 3023 10 – Cubicle option Remote setpoint 50Hz
1900302360 1900 3023 60 – Cubicle option Remote setpoint 60Hz

1900302316

1900 3023 16 – Vibration transmitters
1900302314 1900 3023 14 – Oilheater 50Hz 230V
1900302312 1900 3023 12 – Oilheater 50Hz 400V
1900302315 1900 3023 15 – Oilheater 50Hz 500V
1900302365 1900 3023 65 – Oilheater 60Hz 230V
1900302366 1900 3023 66 – Oilheater 60Hz 380V

1900302362

1900 3023 62 – Oilheater 60Hz 440-460V
1900302364 1900 3023 64 – Oilheater 60Hz 575V
1089941668 1089 9416 68 – Circuit breaker 380V/60Hz
1089941675 1089 9416 75 – 3 phase Terminal block 60Hz
1900302301 1900 3023 01 – PT100 in windings 50Hz
1900302351 1900 3023 51 – PT100 in windings 60Hz

1900302302

1900 3023 02 – PT100 in bearings 50Hz
1900302352 1900 3023 52 – PT100 in bearings 60Hz
1900302303 1900 3023 03 – Anti condensation heater
1900302353 1900 3023 53 – Anti condensation heater
1900302313 1900 3023 13 – Anti condensation heater
1900302304 1900 3023 04 – Automatic cond. Drain IC’s 50Hz

1900302354

1900 3023 54 – Automatic cond. Drain IC’s 60Hz
1089920323 1089 9203 23 – Circuit breaker 50Hz
1089920331 1089 9203 31 – Circuit breaker 60Hz
1900302305 1900 3023 05 – Automatic cond. Drain AC 50Hz
1900302355 1900 3023 55 – Automatic cond. Drain AC 60Hz
1621950680 1621 9506 80 – Cubicle door
1621950600 1621 9506 00 – Cubicle door

1088100102

1088 1001 02 – Warning mark
1613343100 1613 3431 00 – Label
1900071031 1900 0710 31 – Regulator
1900071052 1900 0710 52 – AIEZ regulator
1900071151 1900 0711 51 – AIOE regulator
0160603800 0160 6038 00 – Screw
0301231500 0301 2315 00 – Washer

1622066101

1622 0661 01 – Cable
1622066102 1622 0661 02 – Cable
1621047800 1621 0478 00 – Label
1900071062 1900 0710 62 – PT100 motor protection
1621817780 1621 8177 80 – Door
1621817700 1621 8177 00 – Door
1079992056 1079 9920 56 – Label

1621817900

1621 8179 00 – Label
1089940511 1089 9405 11 – Display
1089940644 1089 9406 44 – PLC
1900070644 1900 0706 44 – 115V
1900070643 1900 0706 43 – 230V
1089940401 1089 9404 01 – Rack

1089940405

1089 9404 05 – Power supply
1089940406 1089 9404 06 – Fuse
1089940412 1089 9404 12 – CPU
1089940432 1089 9404 32 – Module
1089940431 1089 9404 31 – Module
1089940424 1089 9404 24 – Module
1089940421 1089 9404 21 – Module

1089940427

1089 9404 27 – Module
1089940441 1089 9404 41 – Dummy
1089940420 1089 9404 20 – MODBUS
1089940425 1089 9404 25 – PROFIBUS
1089940423 1089 9404 23 – PT100 Windings
1091636351 1091 6363 51 – Emergency stop button
1089036238 1089 0362 38 – Contact block

1089943608

1089 9436 08 – Trafo
1091626793 1091 6267 93 – Trafo 50Hz
1089943611 1089 9436 11 – Trafo 60Hz
1089928105 1089 9281 05 – Power supply
1089061890 1089 0618 90 – Vibration transmitter
1900302401 1900 3024 01 – Cubicle option Vibration transmitters
1900302402 1900 3024 02 – Oilheater 50Hz

1900302452

1900 3024 52 – Oilheater 60Hz
1900302404 1900 3024 04 – Anti condensation heater 50Hz IRA3, ILA4 motor
1900302405 1900 3024 05 – Anti condensation heater 50Hz IRA4 motor
1900302406 1900 3024 06 – Anti condensation heater 60Hz IRA4 motor
1900302407 1900 3024 07 – Automatic cond. Drain

1088003165

1088 0031 65 – Connector
1900302408 1900 3024 08 – Automatic water shut off valve
1089919902 1089 9199 02 – Time relay
1089941603 1089 9416 03 – 3 phase bridge
1089907661 1089 9076 61 – Trafo 60Hz

For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:

  • Our Wechat(Scan below image)
Contact

Bodywork of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621951800 1621 9518 00 – Support
1613131236 1613 1312 36 – Strip
1621936780 1621 9367 80 – Panel
1613131239 1613 1312 39 – Strip
1621943000 1621 9430 00 – Support

1621931580

1621 9315 80 – Plate
1621858280 1621 8582 80 – Door
1619266500 1619 2665 00 – AR Seal
1621858281 1621 8582 81 – Door
1621858282 1621 8582 82 – Door
1621610700 1621 6107 00 – Decal

0801141800

0801 1418 00 – House mark
1621858284 1621 8582 84 – Door
0690114001 0690 1140 01 – House mark
1621858380 1621 8583 80 – Door
1614561600 1614 5616 00 – Grating
1621858480 1621 8584 80 – Door
1621941980 1621 9419 80 – Door
1621941981 1621 9419 81 – Door

1621876580

1621 8765 80 – Stay
1079990109 1079 9901 09 – Label
1619944580 1619 9445 80 – Stay
1079990549 1079 9905 49 – Label
1619916880 1619 9168 80 – Roof
1613131219 1613 1312 19 – Strip
1621931680 1621 9316 80 – Plate

1613131234

1613 1312 34 – Strip
1619938180 1619 9381 80 – Roof
1613131203 1613 1312 03 – Strip
1613131210 1613 1312 10 – Strip
1621931480 1621 9314 80 – Plate
1613131208 1613 1312 08 – Strip
1619937980 1619 9379 80 – Roof
1613131237 1613 1312 37 – Strip

Parts NO.

Name
1621936880 1621 9368 80 – Panel
1621936980 1621 9369 80 – Panel
3000027417 3000 0274 17 – Washer
1621937080 1621 9370 80 – Panel
1621937180 1621 9371 80 – Panel

1621937280

1621 9372 80 – Panel
1621944680 1621 9446 80 – Bracket
1621952480 1621 9524 80 – Bracket
1621916280 1621 9162 80 – Front panel
1079991369 1079 9913 69 – Inform.label
1079991379 1079 9913 79 – Inform.label

1621937380

1621 9373 80 – Door
0211096378 0211 0963 78 – Cap screw
1621937780 1621 9377 80 – Front panel
1621937680 1621 9376 80 – Front panel
1621937580 1621 9375 80 – Support
1621901480 1621 9014 80 – Panel
1613131211 1613 1312 11 – Strip

1619275800

1619 2758 00 – AR Seal
1621901580 1621 9015 80 – Panel
1621915680 1621 9156 80 – Panel
1621932880 1621 9328 80 – Duct ZH9000
1619276500 1619 2765 00 – AR Seal
1621916980 1621 9169 80 – Baffle

1619247300

1619 2473 00 – AR Seal
1621917080 1621 9170 80 – Baffle
1613131213 1613 1312 13 – Strip
1619279500 1619 2795 00 – AR Rubber strip
1621932380 1621 9323 80 – Duct

1621951980

1621 9519 80 – Baffle
1088080153 1088 0801 53 – Grommet
1621952080 1621 9520 80 – Baffle
0395600160 0395 6001 60 – 50 x 2040 x 1650

Drive gear of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1320401507 1320 4015 07 – ZH9000-1-100, ZH15000-1-7
1320401510 1320 4015 10 – ZH9000-2-100, ZH15000-2-7
1320401509 1320 4015 09 – ZH9000-3-100, ZH15000-3-7
1320401508 1320 4015 08 – ZH9000-4-100, ZH15000-4-7

1320401505

1320 4015 05 – ZH9000-5-100, ZH15000-5-7
1320401844 1320 4018 44 – ZH9000-1-100, ZH15000-1-7
1320401839 1320 4018 39 – ZH9000-1-115, ZH15000-1-8
1320401838 1320 4018 38 – ZH9000-1-125, ZH15000-1-9
1320401837 1320 4018 37 – ZH9000-1-150, ZH15000-1-10.4

1320401805

1320 4018 05 – ZH9000-2-100, ZH15000-2-7
1320401806 1320 4018 06 – ZH9000-2-115, ZH15000-2-8
1320401807 1320 4018 07 – ZH9000-2-125, ZH15000-2-9
1320401845 1320 4018 45 – ZH9000-2-150, ZH15000-2-10.4
1320401810 1320 4018 10 – ZH9000-3-100, ZH15000-3-7

1320401841

1320 4018 41 – ZH9000-3-115, ZH15000-3-8
1320401812 1320 4018 12 – ZH9000-3-125, ZH15000-3-9
1320401813 1320 4018 13 – ZH9000-3-150, ZH15000-3-10.4
1320401815 1320 4018 15 – ZH9000-4-100, ZH15000-4-7
1320401846 1320 4018 46 – ZH9000-4-115, ZH15000-4-8

1320401817

1320 4018 17 – ZH9000-4-125, ZH15000-4-9
1320401818 1320 4018 18 – ZH9000-4-150, ZH15000-4-10.4
1320401830 1320 4018 30 – ZH9000-5-100, ZH15000-5-7
1320401831 1320 4018 31 – ZH9000-5-115, ZH15000-5-8
1320401832 1320 4018 32 – ZH9000-5-125, ZH15000-5-9

1320401836

1320 4018 36 – ZH9000-5-150, ZH15000-5-10.4
1320401819 1320 4018 19 – ZH9000-6-100, ZH15000-6-7
1320401826 1320 4018 26 – ZH9000-6-115, ZH15000-6-8
1320401829 1320 4018 29 – ZH9000-6-125, ZH15000-6-9
1320401823 1320 4018 23 – ZH9000-6-150, ZH15000-6-10.4

1420050915

1420 0509 15 – O-ring
1420050914 1420 0509 14 – O-ring
1420050375 1420 0503 75 – O-ring
1320405412 1320 4054 12 – ZH9000-1-100, ZH15000-1-7
1320405401 1320 4054 01 – ZH9000-2-100, ZH15000-2-7

1320405402

1320 4054 02 – ZH9000-3-100, ZH15000-3-7
1320405403 1320 4054 03 – ZH9000-4-100, ZH15000-4-7
1320405411 1320 4054 11 – ZH9000-5-100, ZH15000-5-7
1320405415 1320 4054 15 – ZH9000-6-100, ZH15000-6-7
1320405716 1320 4057 16 – ZH9000-1-100, ZH15000-1-7

1320405701

1320 4057 01 – ZH9000-2-100, ZH15000-2-7
1320405718 1320 4057 18 – ZH9000-3-100, ZH15000-3-7
1320405754 1320 4057 54 – ZH9000-4-100, ZH15000-4-7
1320405710 1320 4057 10 – ZH9000-5-100, ZH15000-5-7
1320405720 1320 4057 20 – ZH9000-6-115, ZH15000-6-8

1320406062

1320 4060 62 – ZH9000-1-100, ZH15000-1-7
1320406042 1320 4060 42 – ZH9000-1-115, ZH15000-1-8
1320406043 1320 4060 43 – ZH9000-1-125, ZH15000-1-9
1320406045 1320 4060 45 – ZH9000-1-150, ZH15000-1-10.4
1320406005 1320 4060 05 – ZH9000-2-100, ZH15000-2-7

1320406006

1320 4060 06 – ZH9000-2-115, ZH15000-2-8
1320406007 1320 4060 07 – ZH9000-2-125, ZH15000-2-9
1320406063 1320 4060 63 – ZH9000-2-150, ZH15000-2-10.4
1320406010 1320 4060 10 – ZH9000-3-100, ZH15000-3-7
1320406048 1320 4060 48 – ZH9000-3-115, ZH15000-3-8

1320406012

1320 4060 12 – ZH9000-3-125, ZH15000-3-9
1320406013 1320 4060 13 – ZH9000-3-150, ZH15000-3-10.4
1320406015 1320 4060 15 – ZH9000-4-100, ZH15000-4-7
1320406064 1320 4060 64 – ZH9000-4-115, ZH15000-4-8
1320406017 1320 4060 17 – ZH9000-4-125, ZH15000-4-9

1320406018

1320 4060 18 – ZH9000-4-150, ZH15000-4-10.4
1320406030 1320 4060 30 – ZH9000-5-100, ZH15000-5-7
1320406031 1320 4060 31 – ZH9000-5-115, ZH15000-5-8
1320406032 1320 4060 32 – ZH9000-5-125, ZH15000-5-9
1320405944 1320 4059 44 – ZH9000-5-150, ZH15000-5-10.4

1320406061

1320 4060 61 – ZH9000-6-100, ZH15000-6-7
1320406059 1320 4060 59 – ZH9000-6-115, ZH15000-6-8
1320406051 1320 4060 51 – ZH9000-6-125, ZH15000-6-9
1320406056 1320 4060 56 – ZH9000-6-150, ZH15000-6-10.4
1420120186 1420 1201 86 – ZH9000

1320413621

1320 4136 21 – ZH9000
1320406920 1320 4069 20 – Bearing
1320406921 1320 4069 21 – Bearing
1420050035 1420 0500 35 – O-ring
1420050845 1420 0508 45 – Seal – Oil split

1320407337

1320 4073 37 – Seal – Labyrinth
1420031496 1420 0314 96 – Cap screw
0211148100 0211 1481 00 – Cap screw
0384331100 0384 3311 00 – Springwasher
1420116196 1420 1161 96 – Vibration probe
1420040923 1420 0409 23 – Nipple

9711163911

9711 1639 11 – Straight coupling
1420030415 1420 0304 15 – Floor washer
1420112689 1420 1126 89 – Conduit
1420112690 1420 1126 90 – Conduit
1420090929 1420 0909 29 – Breather

1320708105

1320 7081 05 – Nipple
0564000026 0564 0000 26 – Tee
1420043571 1420 0435 71 – Connection
1420044346 1420 0443 46 – Tee
1420420518 1420 4205 18 – Tube

1420040393

1420 0403 93 – Coupling assy
1420044838 1420 0448 38 – Connection
1420044351 1420 0443 51 – Tee
1420043599 1420 0435 99 – Connection
0420095101 0420 0951 01 – Plug

Parts NO.

Name
1320406526 1320 4065 26 – Bearing
1320406626 1320 4066 26 – Bearing
1320406725 1320 4067 25 – Bearing
1320406825 1320 4068 25 – Bearing
1320409408 1320 4094 08 – Shim package

1320409400

1320 4094 00 – Shim package
1420031438 1420 0314 38 – Screw
1420031437 1420 0314 37 – Dowel pin
1320407335 1320 4073 35 – Seal – Holder
1320407323 1320 4073 23 – Seal – Holder
1420031439 1420 0314 39 – Cap screw

1420031272

1420 0312 72 – Retaining ring
1420051018 1420 0510 18 – O-ring
1320407013 1320 4070 13 – Seal – Labyrinth stages 1-2
1320407201 1320 4072 01 – Seal – Labyrinth stage 3
1320407016 1320 4070 16 – Seal – Carbon ring stages 1-2
1420050248 1420 0502 48 – O-ring

1320407210

1320 4072 10 – Seal – Carbon ring stage 3
0800000043 0800 0000 43 – O-ring
1420050579 1420 0505 79 – O-ring
1420050512 1420 0505 12 – O-ring
1420050269 1420 0502 69 – O-ring
1420050820 1420 0508 20 – O-ring
1420031917 1420 0319 17 – Retaining ring

0800002879

0800 0028 79 – O-ring
1320407333 1320 4073 33 – End cap
1420050954 1420 0509 54 – O-ring
1320707848 1320 7078 48 – Relief valve
1420060006 1420 0600 06 – Coupling assy
1320409551 1320 4095 51 – Key – Bull gear

0800758000

0800 7580 00 – Nozzle
0800001238 0800 0012 38 – O-ring
1420051017 1420 0510 17 – O-ring
1420045370 1420 0453 70 – Plug
1420031497 1420 0314 97 – Cap screw
0384326200 0384 3262 00 – Springwasher
1420031498 1420 0314 98 – Cap screw

0384320400

0384 3204 00 – Springwasher
1420031842 1420 0318 42 – Pin
0800825001 0800 8250 01 – Pin
1420031843 1420 0318 43 – Pin
0420097112 0420 0971 12 – Nipple
1320420515 1320 4205 15 – Elbow coupling
1320420519 1320 4205 19 – Tube

1320420512

1320 4205 12 – Tube
1320420516 1320 4205 16 – Tube
1420090136 1420 0901 36 – Breather
1320406486 1320 4064 86 – ZH9000-1-100, ZH15000-1-7
1320406451 1320 4064 51 – ZH9000-1-115, ZH15000-1-8
1320406454 1320 4064 54 – ZH9000-1-125, ZH15000-1-9

1320406475

1320 4064 75 – ZH9000-1-150, ZH15000-1-10.4
1320406453 1320 4064 53 – ZH9000-2-115, ZH15000-2-8
1320405760 1320 4057 60 – ZH9000-2-125, ZH15000-2-9
1320406458 1320 4064 58 – ZH9000-2-150, ZH15000-2-10.4
1320406488 1320 4064 88 – ZH9000-3-125, ZH15000-3-9
1320406485 1320 4064 85 – ZH9000-4-125, ZH15000-4-9

1320406479

1320 4064 79 – ZH9000-5-100, ZH15000-5-7
1320406478 1320 4064 78 – ZH9000-5-115, ZH15000-5-8
1320406484 1320 4064 84 – ZH9000-5-125, ZH15000-5-9
1320406476 1320 4064 76 – ZH9000-6-115, ZH15000-6-8
1320406455 1320 4064 55 – ZH9000-6-125, ZH15000-6-9

1320420517

1320 4205 17 – Tube
0420097122 0420 0971 22 – Nipple
1320406465 1320 4064 65 – ZH9000-1-100, ZH15000-1-7
1320406466 1320 4064 66 – ZH9000-6-100, ZH15000-6-7
1320406477 1320 4064 77 – ZH9000-1-100, ZH15000-1-7
1320406473 1320 4064 73 – ZH9000-4-100, ZH15000-4-7

1320407614

1320 4076 14 – ZH9000-5-125
1320407615 1320 4076 15 – ZH9000-6-100
1320407613 1320 4076 13 – ZH9000-4-100
1420140283 1420 1402 83 – Name plate
1320409410 1320 4094 10 – .124 inch
1320409437 1320 4094 37 – .125 inch
1320409438 1320 4094 38 – .126 inch

1320409439

1320 4094 39 – .127 inch

1320409440

1320 4094 40 – .128 inch
1320409441 1320 4094 41 – .129 inch
1320409442 1320 4094 42 – .130 inch
1320409443 1320 4094 43 – .131 inch
1320409444 1320 4094 44 – .132 inch
1320409445 1320 4094 45 – .133 inch

1320409446

1320 4094 46 – .134 inch

1320409447

1320 4094 47 – .135 inch
1320409448 1320 4094 48 – .136 inch
1320407610 1320 4076 10 – ZH9000-1-100
1320407611 1320 4076 11 – ZH9000-2-100
1320407612 1320 4076 12 – ZH9000-3-100
1320400262 1320 4002 62 – Gearbox

3176786806

3176 7868 06 – Plug
0420097116 0420 0971 16 – Nipple
1320708125 1320 7081 25 – Bushing
0800668000 0800 6680 00 – Nipple
1420046573 1420 0465 73 – Nipple
0244418400 0244 4184 00 – Drive screw

Core unit of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1420071035 1420 0710 35 – Size 375, Bore diameter 110mm
1420070954 1420 0709 54 – Size 350, No bore – L=15inch
1420071034 1420 0710 34 – Size 375, No bore – L=15inch
1420070993 1420 0709 93 – Size 350, Bore diameter 90mm – L=25inch

1420070947

1420 0709 47 – Size 350, No bore
1420071037 1420 0710 37 – Size 375, No bore
1420070948 1420 0709 48 – Size 350, No bore

1420071036

1420 0710 36 – Size 375, No bore
1420070950 1420 0709 50 – Size 350, Bore diameter 90mm
1420070951 1420 0709 51 – Size 350, Bore diameter 110mm

Parts NO.

Name
1621940600 1621 9406 00 – Wire harness Elektronikon
1621951300 1621 9513 00 – Support
1420070853 1420 0708 53 – Size 350, No bore

1420070892

1420 0708 92 – Size 375, No bore
1621948300 1621 9483 00 – Wire harness PLC
1621951100 1621 9511 00 – Size 350, Bore diameter 110mm – L=15inch
1621951200 1621 9512 00 – Size 375, Bore diameter 110mm – L=15inch
1621946600 1621 9466 00 – Wire harness Elektronikon

1621953001

1621 9530 01 – Wire harness PLC – PT100 windings
1621924900 1621 9249 00 – Wire harness PLC
1621953000 1621 9530 00 – Wire harness PLC

For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:

  • Our Wechat(Scan below image)
Contact

Rotor assembly – Stage 3 of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1320408230 1320 4082 30 – ZH9000-1-100
1320408231 1320 4082 31 – ZH9000-1-115
1320408232 1320 4082 32 – ZH9000-1-125
1320408233 1320 4082 33 – ZH9000-1-150
1320408235 1320 4082 35 – ZH9000-2-100

1320408236

1320 4082 36 – ZH9000-2-115
1320408237 1320 4082 37 – ZH9000-2-125
1320408238 1320 4082 38 – ZH9000-2-150
1320408240 1320 4082 40 – ZH9000-3-100
1320408241 1320 4082 41 – ZH9000-3-115
1320408242 1320 4082 42 – ZH9000-3-125

1320408243

1320 4082 43 – ZH9000-3-150
1320408245 1320 4082 45 – ZH9000-4-100
1320408246 1320 4082 46 – ZH9000-4-115
1320408247 1320 4082 47 – ZH9000-4-125

Parts NO.

Name
0147148203 0147 1482 03 – PED Bolt
0147169387 0147 1693 87 – AS Bolt
1621869580 1621 8695 80 – Intercooler 1 PED
1621869582 1621 8695 82 – Intercooler 1 AS
1320408251 1320 4082 51 – ZH9000-5-115

1320408252

1320 4082 52 – ZH9000-5-125
1320408253 1320 4082 53 – ZH9000-5-150
1320408255 1320 4082 55 – ZH9000-6-100
1320408256 1320 4082 56 – ZH9000-6-115
1320408257 1320 4082 57 – ZH9000-6-125

1320408258

1320 4082 58 – ZH9000-6-150
1320408200 1320 4082 00 – ZH15000-1-7
1320408201 1320 4082 01 – ZH15000-1-8
1320408248 1320 4082 48 – ZH9000-4-150
1320408250 1320 4082 50 – ZH9000-5-100

Intercooler of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621893900 1621 8939 00 – Core PED
1621869105 1621 8691 05 – Cover LLOYDS
1621869208 1621 8692 08 – Cover PED

1621869605

1621 8696 05 – Cooler shell LLOYDS
1621930700 1621 9307 00 – Profile AR
1621869608 1621 8696 08 – Cooler shell PED
1621869502 1621 8695 02 – Cooler shell AS

1621869505

1621 8695 05 – Cooler shell LLOYDS
1621869108 1621 8691 08 – Cover PED
1621869102 1621 8691 02 – Cover AS
1621894100 1621 8941 00 – Spacing ring

Parts NO.

Name
1621869680 1621 8696 80 – Intercouler 2 PED
1621869682 1621 8696 82 – Intercouler 2 AS
1621869685 1621 8696 85 – Intercouler 2 LLOYDS

1621869602

1621 8696 02 – Cooler shell AS
1621893902 1621 8939 02 – Core AS
1621869202 1621 8692 02 – Cover AS
0663966102 0663 9661 02 – O-ring

1621869205

1621 8692 05 – Cover LLOYDS
1621852600 1621 8526 00 – Seal Core
0663210736 0663 2107 36 – O-ring

Aftercooler of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
0108129800 0108 1298 00 – Spring pin
1621873000 1621 8730 00 – Spacer ring
1621869705 1621 8697 05 – LLOYDS
1621853200 1621 8532 00 – Ring

1621869780

1621 8697 80 – Aftercooler
0147163604 0147 1636 04 – Bolt
0147196387 0147 1963 87 – AS
1621853000 1621 8530 00 – AR Seal
0663210507 0663 2105 07 – O-ring

1621869708

1621 8697 08 – Cooler shell
0663210991 0663 2109 91 – O-ring
1621869782 1621 8697 82 – PED
1621869785 1621 8697 85 – LLOYDS

Parts NO.

Name
1621896405 1621 8964 05 – LLOYDS
1621894000 1621 8940 00 – Core
1621894002 1621 8940 02 – PED

1621894005

1621 8940 05 – LLOYDS
1621924300 1621 9243 00 – Profile
1621869702 1621 8697 02 – UDT
1621896908 1621 8969 08 – Cover
1621896902 1621 8969 02 – PED

1621896905

1621 8969 05 – LLOYDS
1621896408 1621 8964 08 – Cover
1621896402 1621 8964 02 – PED
1621832600 1621 8326 00 – AR Seal
0101195161 0101 1951 61 – Dowelpin

Inlet Guide Vane of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
0634100054 0634 1000 54 – Victaulic coupl
1621889200 1621 8892 00 – Cover
0301233510 0301 2335 10 – Washer

0147132203

0147 1322 03 – Bolt
0500451030 0500 4510 30 – Bearing
1621838600 1621 8386 00 – Bracket
0147132302 0147 1323 02 – Bolt
0147132402 0147 1324 02 – Lock washer

0211136000

0211 1360 00 – Cap screw
0698514061 0698 5140 61 – Cable gland
1621888080 1621 8880 80 – Inlet Guide Vane
1621888000 1621 8880 00 – Housing

Parts NO.

Name
4090031300 4090 0313 00 – O-ring
1621887900 1621 8879 00 – Vane
1621890001 1621 890 01 – Bearing

0333050013

0333 0500 13 – Wave spring
1621885002 1621 885 02 – Lever
1621884000 1621 884 00 – Lever
0108169167 0108 1691 67 – Spring pin
0502109205 0502 1092 05 – Ring

1621889000

1621 889 00 – Spacer
0223400009 0223 4000 09 – Bolt
1621885000 1621 885 00 – Ball
0223400028 0223 4000 28 – Bolt

Actuator of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621948001 1621 9480 01 – Actuator
1621948002 1621 9480 02 – On Inlet Guide Vane
2900200000 2900 2000 00 – Limit switch assy

2900200002

2900 2000 02 – Terminal compartment
2900200003 2900 2000 03 – Power supply assy
2900200004 2900 2000 04 – Motor

Parts NO.

Name
2900200500 2900 2005 00 – Sealing set
2900200600 2900 2006 00 – Q-MOD module

2900200700

2900 2007 00 – Q-STM module
1089903705 1089 9037 05 – Fuse
1621879800 1621 8798 00 – Insert
1621871200 1621 8712 00 – Insert

Air system of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
0162432200 0162 4322 00 – Screw
0147136003 0147 1360 03 – Bolt
0147196272 0147 1962 72 – Bolt
1616328600 1616 3286 00 – Washer
1621054600 1621 0546 00 – Filter element

1621934200

1621 9342 00 – Bracket
1621934300 1621 9343 00 – Bracket
1621934400 1621 9344 00 – Cap screw
0333312700 0333 3127 00 – Lock washer
0634100040 0634 1000 40 – Victaulic coupling

0296111102

0296 1111 02 – Wing nut
1621898780 1621 8987 80 – Door
1613131233 1613 1312 33 – Strip
0211196378 0211 1963 78 – Cap screw
1621928600 1621 9286 00 – Hose clip
1621897880 1621 8978 80 – Sockle

1614805708

1614 8057 08 – Data plate
1621933680 1621 9336 80 – Filter housing
0634100031 0634 1000 31 – Victaulic coupling
0666100025 0666 1000 25 – Seal washer
0868371601 0868 3716 01 – Plug
1621953280 1621 9532 80 – Panel

1621869908

1621 8699 08 – Connection pipe
0634100008 0634 1000 08 – Victaulic coupl
1621928700 1621 9287 00 – Stud
0634100052 0634 1000 52 – Victaulic coupl
0634100032 0634 1000 32 – Victaulic coupling
1621896100 1621 8961 00 – Outlet manifold
0129310400 0129 3104 00 – Blind rivet

0686371601

0686 3716 01 – Plug
0108129200 0108 1292 00 – Spring pin
0663716702 0663 7167 02 – O-ring
1621171205 1621 1712 05 – Check valve
1621173500 1621 1735 00 – Plate
1621896200 1621 8962 00 – Discharge pipe

0147157203

0147 1572 03 – Bolt
0266211600 0266 2116 00 – Nut
0634100025 0634 1000 25 – Seal washer
0661100026 0661 1000 26 – Seal washer
0686371630 0686 3716 30 – Plug

1621941200

1621 9412 00 – Socle
0147139803 0147 1398 03 – Bolt
0266211200 0266 2112 00 – Nut
1621941100 1621 9411 00 – Plate

Parts NO.

Name
1621869900 1621 8699 00 – Connection pipe
1621870000 1621 8700 00 – Connection pipe
0634100037 0634 1000 37 – Victaulic coupl
1621870100 1621 8701 00 – Connection pipe
1621869800 1621 8698 00 – Connection pipe

1621946800

1621 9468 00 – Silencer
1619276602 1619 2766 02 – Bolt
1621899080 1621 8990 80 – Panel
1613131224 1613 1312 24 – Strip
1613131218 1613 1312 18 – Foamholder
1621897000 1621 8970 00 – Support

1621899081

1621 8990 81 – Inlet silencer
1619533701 1619 5337 01 – Bolt
1621941000 1621 9410 00 – Support
0147132503 0147 1325 03 – Bolt
1619312007 1619 3120 07 – Compensator
1619929300 1619 9293 00 – DIN ANSI

1621155703

1621 1557 03 – Bolt
2906052000 2906 0520 00 – Check valve kit
1621896700 1621 8967 00 – Pipe
1621947900 1621 9479 00 – Support
1621935000 1621 9350 00 – Support
0147136403 0147 1364 03 – Bolt

1621898200

1621 8982 00 – Beam
0147140103 0147 1401 03 – Bolt
0301235800 0301 2358 00 – Washer
1621017716 1621 0177 16 – Compensator
1621017715 1621 0177 15 – DIN ANSI
0147155703 0147 1557 03 – Bolt
1621942200 1621 9422 00 – Pipe

0650100104

0650 1001 04 – Gasket
1621942300 1621 9423 00 – Pipe
0653107000 0653 1070 00 – Plug
1621899180 1621 8991 80 – Panel
1621941700 1621 9417 00 – Pipe
1614805705 1614 8057 05 – CE

1621870801

1621 8708 01 – Blow-off valve
1621953200 1621 9532 00 – Panel
1615788400 1615 7884 00 – Clip
1613131206 1613 1312 06 – Strip
1621898680 1621 8986 80 – Panel
1613131243 1613 1312 43 – Strip
1613131235 1613 1312 35 – Strip

Water system of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621897300 1621 8973 00 – Pipe
1621892900 1621 8929 00 – Pipe
0634100033 0634 1000 33 – Victaulic coupling
0147147903 0147 1479 03 – Bolt
0663315200 0663 3152 00 – O-ring

0663214800

0663 2148 00 – O-ring
0886371601 0886 3716 01 – Plug
1089066811 1089 0668 11 – Solenoid valve 50Hz
1089066812 1089 0668 12 – Solenoid valve 50Hz
2250498300 2250 4983 00 – Nipple
1621897400 1621 8974 00 – Hose assembly

1621893000

1621 8930 00 – Nipple
0661100031 0661 1000 31 – Seal washer
1621929200 1621 9292 00 – Pipe
0147148503 0147 1485 03 – Bolt
0266211400 0266 2114 00 – Nut
0144345303 0144 3453 03 – Bolt
0560130503 0560 1305 03 – Elbow

0652505303

0652 5053 03 – Bend
0581000035 0581 0000 35 – Pipe coupling
1621934000 1621 9340 00 – Valve
0562505303 0562 5053 03 – Bend
1089066813 1089 0668 13 – Solenoid valve
1621946900 1621 9469 00 – Valve
1621950700 1621 9507 00 – Pipe

Parts NO.

Name
0147147803 0147 1478 03 – Bolt
0650010064 0650 0100 64 – Gasket
1621946300 1621 9463 00 – Valve
0268321000 0268 3210 00 – Nut
1621897500 1621 8975 00 – Valve

0147148903

0147 1489 03 – Bolt
0147149203 0147 1492 03 – Bolt
2250498600 2250 4986 00 – Elbow
1619312001 1619 3120 01 – Compensator
1619755500 1619 7555 00 – DIN ANSI
0147148103 0147 1481 03 – Bolt

0886371602

0886 3716 02 – Plug
0350130503 0350 1305 03 – Elbow
0603410403 0603 4104 03 – Hexagon nipple
0820030300 0820 0303 00 – Ball valve
1621929100 1621 9291 00 – Pipe
0147148303 0147 1483 03 – Bolt

0650010052

0650 0100 52 – Gasket
1621947600 1621 9476 00 – Support
0147163003 0147 1630 03 – Bolt
8202030300 8202 0303 00 – Ball valve
0581120226 0581 1202 26 – Pipe coupling
0070600203 0070 6002 03 – AR Flexible
1088130102 1088 1301 02 – Cable strip

For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:

  • Our Wechat(Scan below image)
Contact

Drain system of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
0663210782 0663 2107 82 – O-ring
1614879000 1614 8790 00 – Flange
0147136303 0147 1363 03 – Bolt
0661100029 0661 1000 29 – Seal washer
0581000103 0581 0001 03 – Straight pipe coupling

0070600219

0070 6002 19 – Plastic tube
1621941500 1621 9415 00 – Support
0301234400 0301 2344 00 – Washer
0147136203 0147 1362 03 – Bolt
0147136703 0147 1367 03 – Bolt

0266211100

0266 2111 00 – Nut
0581120038 0581 1200 38 – Pipe coupling
0070600213 0070 6002 13 – Plastic tube
0661100027 0661 1000 27 – Seal washer
0551000198 0551 0001 98 – Threaded pipe
0560020029 0560 0200 29 – Elbow

0581000071

0581 0000 71 – Pipe coupling
0852001014 0852 0010 14 – Ball valve
1621943300 1621 9433 00 – Support
0147132303 0147 1323 03 – Bolt
0261211000 0261 2110 00 – Nut
0560020023 0560 0200 23 – Elbow

0603420019

0603 4200 19 – Hexagon nipple
8204094034 8204 0940 34 – Valve
0560100604 0560 1006 04 – Elbow
0551000010 0551 0000 10 – Threaded pipe
2235254400 2235 2544 00 – Damper

1621896000

1621 8960 00 – Support
0147124403 0147 1244 03 – Bolt
0301232100 0301 2321 00 – Washer
0301233500 0301 2335 00 – Washer

0266211000

0266 2110 00 – Nut
1605830050 1605 8300 50 – Bushing
8102042697 8102 0426 97 – Drain valve (230V/50Hz)
8102042705 8102 0427 05 – Drain valve (115V/60Hz)

Parts NO.

Name
0661100025 0661 1000 25 – Seal washer
0581000045 0581 0000 45 – Pipe coupling
0070600206 0070 6002 06 – Plastic tube
0581000053 0581 0000 53 – Pipe coupling
1621926000 1621 9260 00 – Label

1621947000

1621 9470 00 – Wire harness
0147163203 0147 1632 03 – Bolt
0147163603 0147 1636 03 – Bolt
1621317780 1621 3177 80 – Drain valve
1621309700 1621 3097 00 – Valve base
0868371644 0868 3716 44 – Hexagon plug

0661100023

0661 1000 23 – Seal washer
1202481800 1202 4818 00 – Insert
1202373900 1202 3739 00 – Membrane
1202382500 1202 3825 00 – Float
0147196265 0147 1962 65 – Bolt
1621374600 1621 3746 00 – Strainer

1621374700

1621 3747 00 – Clamp
0663210783 0663 2107 83 – O-ring
1621317700 1621 3177 00 – Valve housing
0147137103 0147 1371 03 – Bolt
1621317781 1621 3177 81 – Drain valve
0000024300 0000 0243 00 – Hose nipple

0686371607

0686 3716 07 – Plug
0661100030 0661 1000 30 – Seal washer
0562040018 0562 0400 18 – Elbow
0605830050 0605 8300 50 – Bushing
0301195161 0301 1951 61 – Dowel pin

0301240500

0301 2405 00 – Washer
9000024300 9000 0243 00 – Hose nipple
0347405222 0347 4052 22 – Hose clip
0075400551 0075 4005 51 – Hose
0560020061 0560 0200 61 – Elbow
0211132503 0211 1325 03 – Cap screw

Oil tank of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621865180 1621 8651 80 – Element
0650010121 0650 0101 21 – Gasket
1621864201 1621 8642 01 – Demister fan
1621864202 1621 8642 02 – Demister fan
1621864203 1621 8642 03 – Demister fan

1621864204

1621 8642 04 – Demister fan
0147171103 0147 1711 03 – IRA3 404-2 / RB
0147196214 0147 1962 14 – IRA4 450…452-2 / SB
0147196090 0147 1960 90 – ILA4 560…562…564-2 / SB
1621844200 1621 8442 00 – IRA3 40…./ SB

1621945900

1621 9459 00 – IRA4 450…452-2 / SB
0301242100 0301 2421 00 – IRA3 404-2 / RB
0301243400 0301 2434 00 – IRA4 450…452-2 / SB
0301244500 0301 2445 00 – ILA4 560…562…564-2 / SB
0147196311 0147 1963 11 – Bolt

1621891701

1621 8917 01 – IRA3 404-2 / RB
1621892001 1621 8920 01 – IRA4 450…452-2 / SB
1621891801 1621 8918 01 – ILA4 450…452-2 / SB
0560020002 0560 0200 02 – Elbow
0551000180 0551 0001 80 – Threaded pipe
1619615306 1619 6153 06 – Ball valve

0571002031

0571 0020 31 – Hose nipple
0075400552 0075 4005 52 – Hose
0347610900 0347 6109 00 – Hose clip
1621929480 1621 9294 80 – Oil tank (No motor)
1621929482 1621 9294 82 – IRA3 404-2 / RB

1621929484

1621 9294 84 – IRA3 40…./ SB
1621929485 1621 9294 85 – IRA4 450…452-2 / SB
1621929486 1621 9294 86 – IRA4 454…456-2 / SB
1621929487 1621 9294 87 – ILA4 450…452-2 / SB
1621929488 1621 9294 88 – ILA4 500…502…504-2 / SB

Parts NO.

Name
1621929400 1621 9294 00 – Oil tank (No motor)
1621929402 1621 9294 02 – IRA3 404-2 / RB
1621929404 1621 9294 04 – IRA3 40…./ SB
1621929405 1621 9294 05 – IRA4 450…452-2 / SB

1621929406

1621 9294 06 – IRA4 454…456-2 / SB
1621929411 1621 9294 11 – ILA4 450…452-2 / SB
1621929412 1621 9294 12 – ILA4 500…502…504-2 / SB
1621929413 1621 9294 13 – ILA4 560…562…564-2 / SB
1621893500 1621 8935 00 – Cover
1621874100 1621 8741 00 – Gasket

0147152303

0147 1523 03 – Bolt
1621929489 1621 9294 89 – ILA4 560…562…564-2 / SB
1621811300 1621 8113 00 – Thermowell
0686371629 0686 3716 29 – Plug
0661100033 0661 1000 33 – Seal washer
1079346101 1079 3461 01 – Clamp

0160602300

0160 6023 00 – Screw
1621600200 1621 6002 00 – Level indicator
0686420800 0686 4208 00 – Plug
0663210779 0663 2107 79 – O-ring
1089068525 1089 0685 25 – Oil heater
1089061730 1089 0617 30 – Oil heater

1089061725

1089 0617 25 – Oil heater
0605835029 0605 8350 29 – Bushing (50Hz)
0653133100 0653 1331 00 – Flat gasket
1621865000 1621 8650 00 – Demister

1621876300

1621 8763 00 – Pipe
0147147503 0147 1475 03 – Bolt
1621940000 1621 9400 00 – Wire harness
1088100101 1088 1001 01 – Warning mark
1079990249 1079 9902 49 – Label

Oil System of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
0147132603 0147 1326 03 – Bolt
0147147603 0147 1476 03 – Bolt
0147196180 0147 1961 80 – Bolt
1621943100 1621 9431 00 – Oil pump (No motor)

1621943101

1621 9431 01 – Oil pump (220-230V/50Hz)
1621943102 1621 9431 02 – Oil pump (400V/50Hz)
1621943103 1621 9431 03 – Oil pump (500V/50Hz)
1621943104 1621 9431 04 – Oil pump (575V/60Hz)
1621943105 1621 9431 05 – Oil pump (220-230V/60Hz)

1621943106

1621 9431 06 – Oil pump (380V/60Hz)
1621943107 1621 9431 07 – Oil pump (440-460V/60Hz)
1621943108 1621 9431 08 – Oil pump (575V/60Hz)
1621943109 1621 9431 09 – Oil pump (No motor)
1621943110 1621 9431 10 – Motor

1080411202

1080 4112 02 – Oil cooler (220-230V/50Hz)

1080411203

1080 4112 03 – Oil cooler (400V/50Hz)
1080411204 1080 4112 04 – Oil cooler (500V/50Hz)
1080411205 1080 4112 05 – Oil cooler (575V/60Hz)
1080411206 1080 4112 06 – Oil cooler (220-230V/60Hz)
1080411207 1080 4112 07 – Oil cooler (380V/60Hz)

1080411208

1080 4112 08 – Oil cooler (440-460V/60Hz)
1080411209 1080 4112 09 – Oil cooler (575V/60Hz)
1080411210 1080 4112 10 – Oil cooler (575V/60Hz)
1621853701 1621 8537 01 – Oil cooler
1621849900 1621 8499 00 – Support
0147135903 0147 1359 03 – Bolt

0663713600

0663 7136 00 – O-ring
1621947700 1621 9477 00 – Pipe
0147136603 0147 1366 03 – Bolt
0291111100 0291 1111 00 – Locknut
2250498500 2250 4985 00 – Elbow

1080421016

1080 4210 16 – Nipple
1621855200 1621 8552 00 – Non return valve
0603420016 0603 4200 16 – Hex nipple
1621928100 1621 9281 00 – Pipe

0575005831

0575 0058 31 – Hose assembly
0147148703 0147 1487 03 – Bolt
1621954600 1621 9546 00 – Drain
1621935300 1621 9353 00 – Pipe

Parts NO.

Name
1621855100 1621 8551 00 – Flange
0663713400 0663 7134 00 – O-ring
1621935400 1621 9354 00 – Pipe
0211140103 0211 1401 03 – Cap screw

0634100041

0634 1000 41 – Victaulic coupling
1621872000 1621 8720 00 – Valve
1621939600 1621 9396 00 – Nozzle
1621894800 1621 8948 00 – Pipe
1619320500 1619 3205 00 – Nipple
0438010208 0438 0102 08 – Cable tie

0574823142

0574 8231 42 – Hose assembly
0564000304 0564 0003 04 – Tee
0574823131 0574 8231 31 – Hose assembly
1079584007 1079 5840 07 – Coupling
0574823163 0574 8231 63 – Hose assembly
1621865600 1621 8656 00 – Flange

1621884700

1621 8847 00 – Oil filter
1079584006 1079 5840 06 – Nipple
0574823560 0574 8235 60 – Hose assembly
1621855601 1621 8556 01 – Amot valve
0575005837 0575 0058 37 – Flexible
1621894900 1621 8949 00 – Pipe

0663713700

0663 7137 00 – O-ring
0144336303 0144 3363 03 – Bolt
0580001473 0580 0014 73 – Straight coupling
1621895000 1621 8950 00 – Pipe
1621895200 1621 8952 00 – Pipe
1621895300 1621 8953 00 – Manifold

1621895400

1621 8954 00 – Pipe
1621874900 1621 8749 00 – Oil filter
1621875000 1621 8750 00 – Oil filter element
0663313000 0663 3130 00 – O-ring
0147140703 0147 1407 03 – Bolt

0653112400

0653 1124 00 – Flat gasket
0686371615 0686 3716 15 – Plug
0663210648 0663 2106 48 – O-ring
0653100041 0653 1000 41 – Victaulic coupling
1621893400 1621 8934 00 – Pipe

Mountings on frame of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621893800 1621 8938 00 – Frame
1010195161 1010 1951 61 – Dowelpin
0147165403 0147 1654 03 – Bolt

1621895800

1621 8958 00 – Support
0147154903 0147 1549 03 – Bolt
1621944800 1621 9448 00 – Absorber
1621873300 1621 8733 00 – Absorber

Parts NO.

Name
0147163803 0147 1638 03 – Bolt
0300027624 0300 0276 24 – Washer
0291112834 0291 1128 34 – Lock nut

0634100043

0634 1000 43 – Victaulic coupling
0101195150 0101 1951 50 – Pin
0301237800 0301 2378 00 – Washer

Control module of Atlas Copco Centrifugal Compressors ZH9000

Parts NO.

Name
1621857800 1621 8578 00 – Support
1089058121 1089 0581 21 – AR race way
1089057546 1089 0575 46 – Pressure transducer
1089057530 1089 0575 30 – Dp transducer

1089057520

1089 0575 20 – Dp transducer
0160604800 0160 6048 00 – Screw
0291110600 0291 1106 00 – Locknut
0661100024 0661 1000 24 – Seal washer
1079584001 1079 5840 01 – Nipple

0575012147

0575 0121 47 – Hose assembly
1619520500 1619 5205 00 – Nipple
0653104600 0653 1046 00 – Flat gasket
0603310100 0603 3101 00 – Hexagon nipple

0147124603

0147 1246 03 – Bolt
0266210800 0266 2108 00 – Elektronikon
0575024128 0575 0241 28 – Seal washer
0575012107 0575 0121 07 – Hose assembly
0581002500 0581 0025 00 – Pipe coupling

Parts NO.

Name
0575012136 0575 0121 36 – Hose assembly
1621939700 1621 9397 00 – Wire harness
0147124604 0147 1246 04 – Bolt
1089056811 1089 0568 11 – Level switch

1089057440

1089 0574 40 – Temperature sensor
0266210700 0266 2107 00 – Nut
0147121103 0147 1211 03 – Bolt
0581002800 0581 0028 00 – Pipe coupling
0211121303 0211 1213 03 – Cap screw

0550130303

0550 1303 03 – Elbow
0653106200 0653 1062 00 – Flat gasket
2250635313 2250 6353 13 – Flexible
0653110024 0653 1100 24 – Flat gasket

1089057528

1089 0575 28 – Pressure transducer
1621945200 1621 9452 00 – Wire harness
1621953100 1621 9531 00 – PLC
0697980905 0697 9809 05 – Lock nut
0211121603 0211 1216 03 – Cap screw

For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:

  • Our Wechat(Scan below image)
Contact
At ANWSK, we specialize in distributing air compressors and genuine original spare parts from leading brands like Atlas Copco, Ingersoll Rand, Epiroc, and CAT. Our product range includes oil-injected screw, oil-free screw, vane, centrifugal, portable compressors, and air dryers, catering to industries such as shipbuilding, mining, power supply, oil and gas, engineering, textiles, food & beverage, pharmaceuticals, cement, and automotive.
  • Direct Sourcing & Authenticity:We source directly from manufacturers like Atlas Copco, CAT, etc. ensuring all spare parts are 100% original and new.
  • Industry Expertise:With extensive experience across diverse sectors, we provide tailored solutions that enhance productivity and reliability.
  • Comprehensive Support:We offer full-service support, including technical consultation, installation, maintenance, and emergency assistance.
  • Commitment to Innovation:We stay updated with the latest advancements, providing cutting-edge technology for improved efficiency and sustainability.
ANWSK is your trusted partner for high-quality air compressor solutions, delivering value and reliability to every customer.
Inner packing:Poly bags
Outer packing:Export carton We deliver this item to worldwide via postal air mail, express, air transportation, sea shipping, etc.
  • If delivery time is not a critical factor and you prefer economical freight charges, you have the option of choosing postal air mail or sea shipping with a registered number. This method typically takes 15-30 days.
  • For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.

For a quicker delivery, we offer express shipping through carriers such as DHL, UPS, FedEx, or EMS. While this service is fast, it comes with a higher cost, and you can expect delivery within 5-10 working days, including our Customs declaration for export.

1. Who are we?
Established in Guangzhou, China, we operate within diverse markets, with a significant presence in the Domestic Market(20.00%),Western Europe(15.00%),Southeast Asia(12.00%),Southern Europe(10.00%),North America(7.00%),Eastern Europe(7.00%),Northern Europe(5.00%),South
America(5.00%),Eastern Asia(5.00%),Mid East(5.00%),Oceania(3.00%),South Asia(2.50%),Africa(2.50%),Central America(1.00%). Our team, consisting of approximately 51-100 professionals, is dedicated to serving our customers worldwide.

2. Quality Assurance:
Ensuring top-notch quality is a cornerstone of our operation. We adhere to OE standards and subject every product to rigorous testing before shipment.

3.Our Product Range:
Explore our comprehensive selection, featuring air filter cartridges, air filters, oil/fuel filters, hydraulic filters, oil separators, air compressor parts, and more.

4. Why Choose Us:
What sets us apart is our unique history as a formerly state-owned enterprise with almost 30 years of expertise. We prioritize quality and offer competitive pricing, making us a reliable choice in the market.

5. Our Services:

  • Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES
  • Accepted Payment Currencies: USD, EUR, CNY
  • Payment Types: T/T, MoneyGram, PayPal, Western Union, Cash, Escrow
  • Languages Spoken: English, Chinese

Choose us for reliable products, quality assurance, and a diverse range of services tailored to your needs.

ANSWK FILTER BANNER1

Established in 2010, Answk Technology Co., Ltd has evolved into a versatile provider, specializing in electronic and mechanical products. The introduction of the Answk Filter Business Division in 2017 marked our dedication to developing cutting-edge dust-removing filter cartridges. With over 30 years of manufacturing experience, our factory prioritizes independent research and sources premium materials globally. Emphasizing quality control, we design major production machines in-house and offer specialized OEM and ODM services to meet custom needs across diverse industries, including the production of original air compressor parts and compatible components for cost-effective solutions.

ANSWK FILTER BANNER1

We provides air filter, oil/fuel filter, hydraulic filter, oil separator, air filter cartridge, air compressor parts, etc. These products cater to diverse industries such as shipbuilding, mining, power supply, air compressors, engineering machinery, and automotive. Our filters are perfectly compatibility of CATERPILLAR, HYUNDAI, JCB, FLEETGUARD, DOOSAN,SANY,VOLKSWAGEN,HONDA,ATLAS COPCO,INGERSOLL RAND etc.

ANSWK FILTER BANNER1

Committed to innovation and excellence, Our Factory is a trusted partner for businesses seeking customized solutions. Our empowering OEM&ODM service leverages manufacturing expertise, seamlessly integrating your unique ideas into the production process. Whether it’s a specific design or product modifications, we deliver high-quality, bespoke solutions with precision and efficiency.

Request a Quote




    For details about our product offerings, pricing, or potential partnerships, our sales team is ready to provide comprehensive information:

    • Room A220,2F, YH Building, Helongyi Road, Helong Street,Baiyun District, Guangzhou, 510440,China

    • +86-20-36293651

    • sales@answk.com

    • Mobile/Wechat/Whatsapp: +86 15328879667

    • Contact Answk Via Whatsapp

    • Our Wechat(Scan below image)

    Contact

    Our dedicated customer support team is available to assist you with any product-related inquiries, technical assistance, or general questions.
